Model

ECW120

Standards

IEEE 802.11b/g/n on 2.4 GHz

IEEE 802.11a/n/ac Wave 2 on 5 GHz

Antenna

1 x 2.4 GHz: 5 dBi

1 x 5 GHz: 5 dBi

Integrated Omni-Directional Antenna

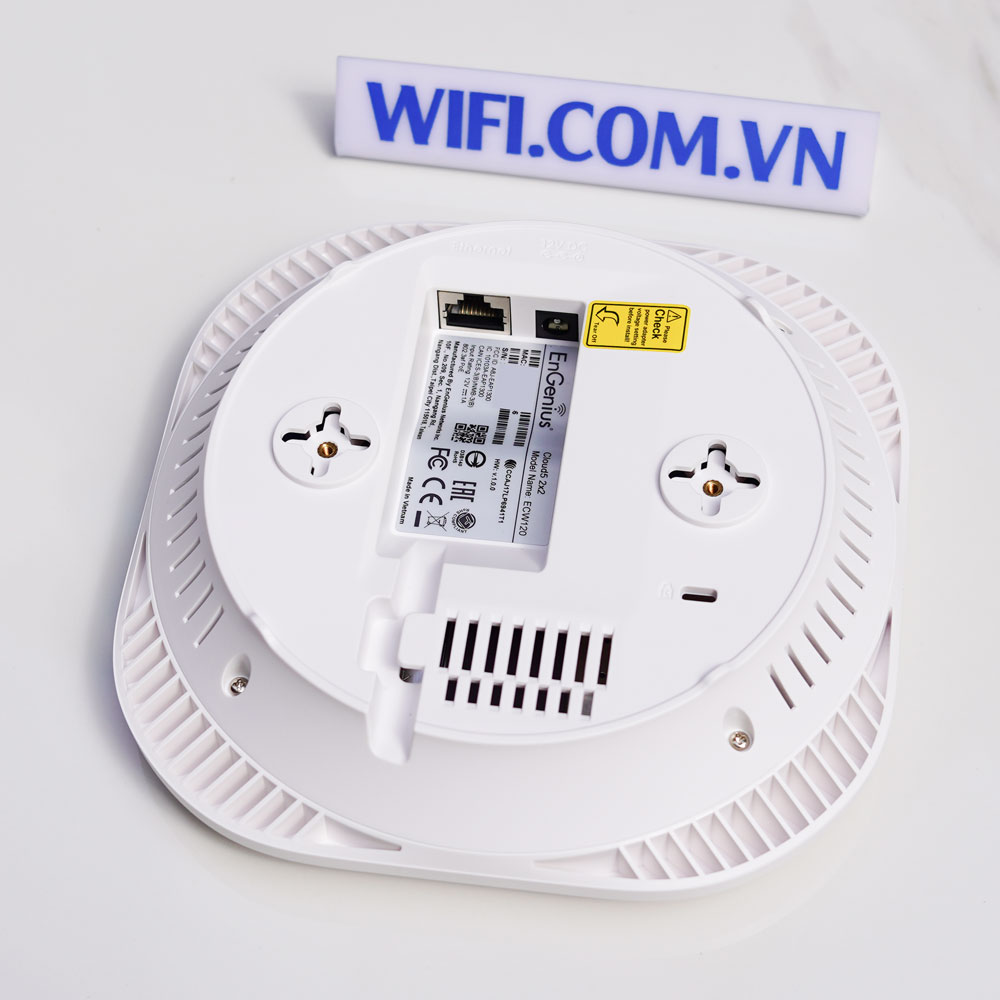

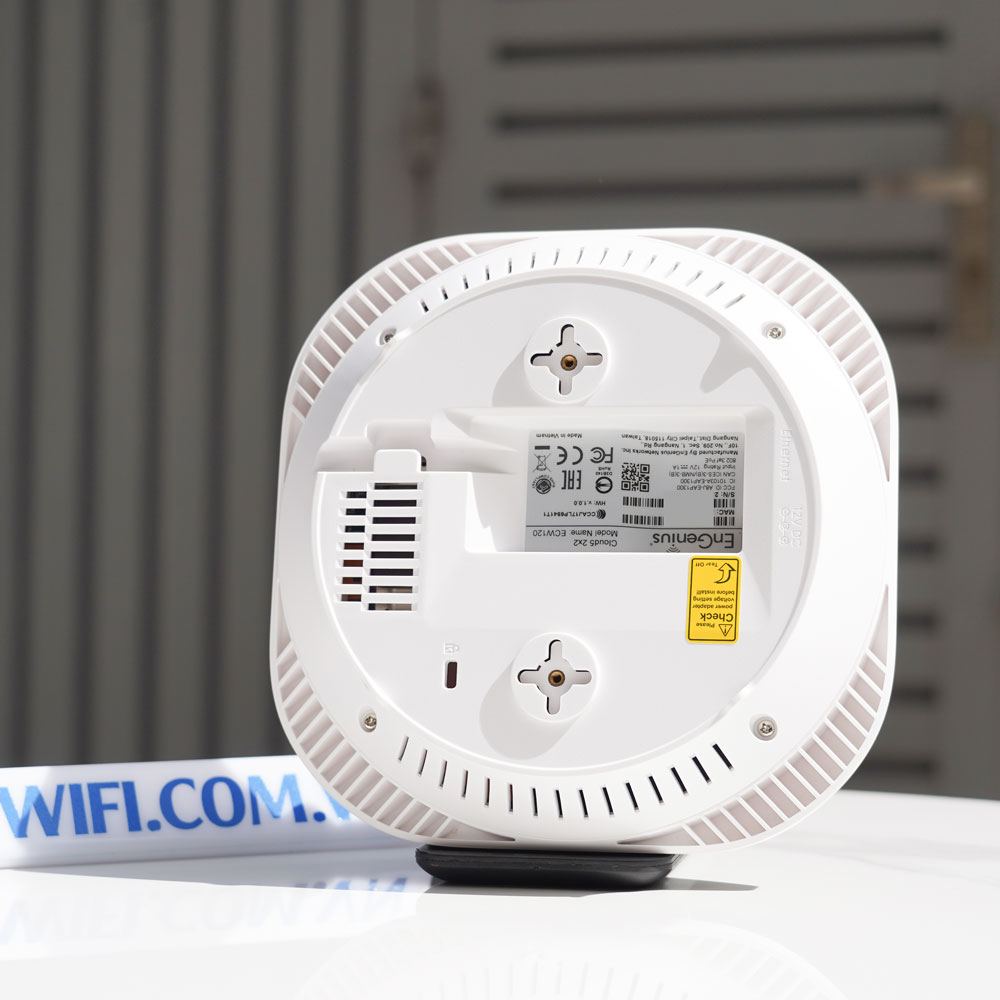

Physical Interface

1 x 10/100/1000 BASE-T, RJ-45 Ethernet Port

1 x DC Jack

1 x Reset Button

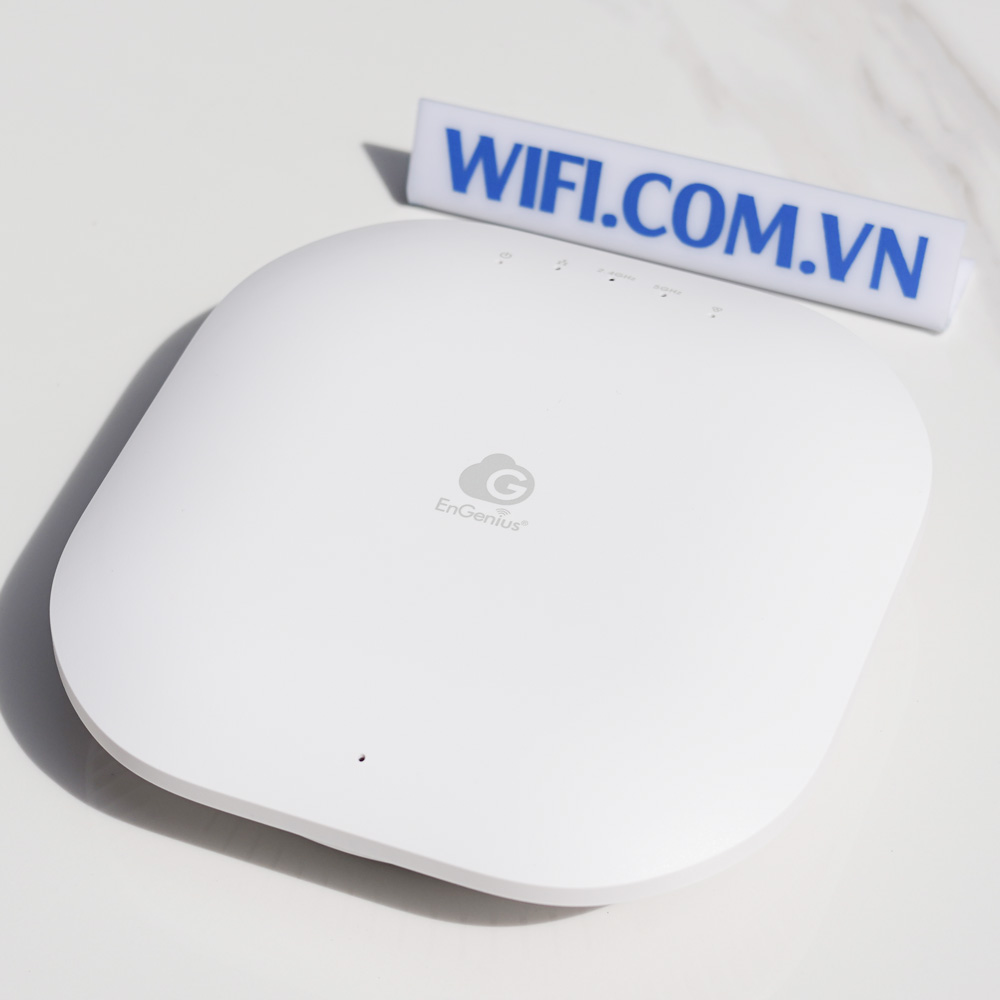

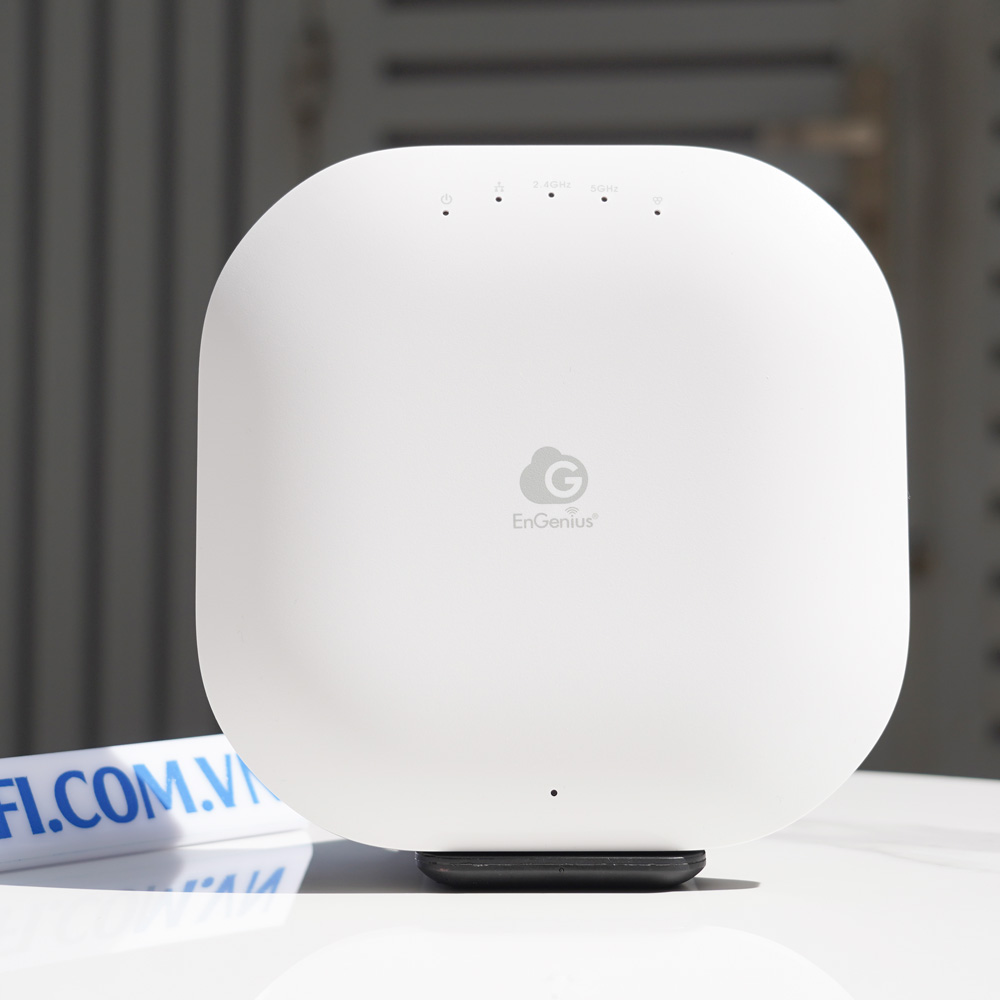

LED Indicators

1 x Power

1 x LAN

1 x 2.4 GHz

1 x 5 GHz

1 x Mesh (ECW120)

Power Source

Power-over-Ethernet: 802.3af Input
IEEE 802.11e Compliant Source

12VDC /2A

Maximum Power Consumption

12W

Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Wireless & Radio Specifications Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes

Manage Mode: AP, AP Mesh

Frequency Radio

2.4 GHz: 2400 MHz ~ 2472 MHz

5 GHz: 5150 MHz ~ 5250 MHz, 5725 MHz ~ 5850 MHz

Transmit Power

Up to 23 dBm on 2.4 GHz

Up to 23 dBm on 5 GHz

Radio Chains/Spatial Stream

2×2:2

SU-MIMO

Two (2) spatial streams Single User SU-MIMO for up to 400 Mbps wireless data rate with VHT40 bandwidth to a 2x2 wireless client device under the 2.4GHz radio. Two (2) spatial stream Single User SU-MIMO for up to 867 Mbps wireless data rate with VHT80 to a 2x2 wireless device under the 5GHz radio.

MU-MIMO

Two (2) Spatial Streams MU-MIMO up to 867 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO capable wireless devices under 5GHz simultaneously.

Supported Data Rates (Mbps)

2.4 GHz: Max 400

5 GHz: Max 867

802.11b: 1, 2, 5.5, 11

802.11a/g: 6, 9, 12, 18, 36, 48, 54

802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) (Additional 25% bandwidth when enabling 256-QAM uner HT40)

802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies

802.11b: Direct-Sequence Spread Spectrum (DSSS)

802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11n/ac: 2×2 MIMO with 2 Streams

Channelization

802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz

802.11n Supports High Throughput (HT)—HT 20/40 MHz

802.11n/ac Packet Aggregation: AMPDU, ASPDU

802.11n Supports Very High Throughput (VHT) Under the 2.4 GHz Radio—VHT 40 MHz (256-QAM)

Multiple BSSID

8 SSIDs on both 2.4GHz and 5GHz radios.

VLAN Tagging

Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree

Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)

Compliant With IEEE 802.11e Standard

WMM

Wireless Security

OWE

WPA2 Personal

WPA3 Personal (SAE) - WPA3 Only
WPA3/WPA2 Personal Mixed

WPA2 Enterprise
WPA3 Enterprise Suite B
Hide SSID in Beacons

MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List

SSH Tunnel
Client Isolation

Dimensions & Weight

Weight: 0.80 lbs. (362 g)
Diameter: 6.36” (161.5 mm)
Height: 1.64” (41.5 mm)

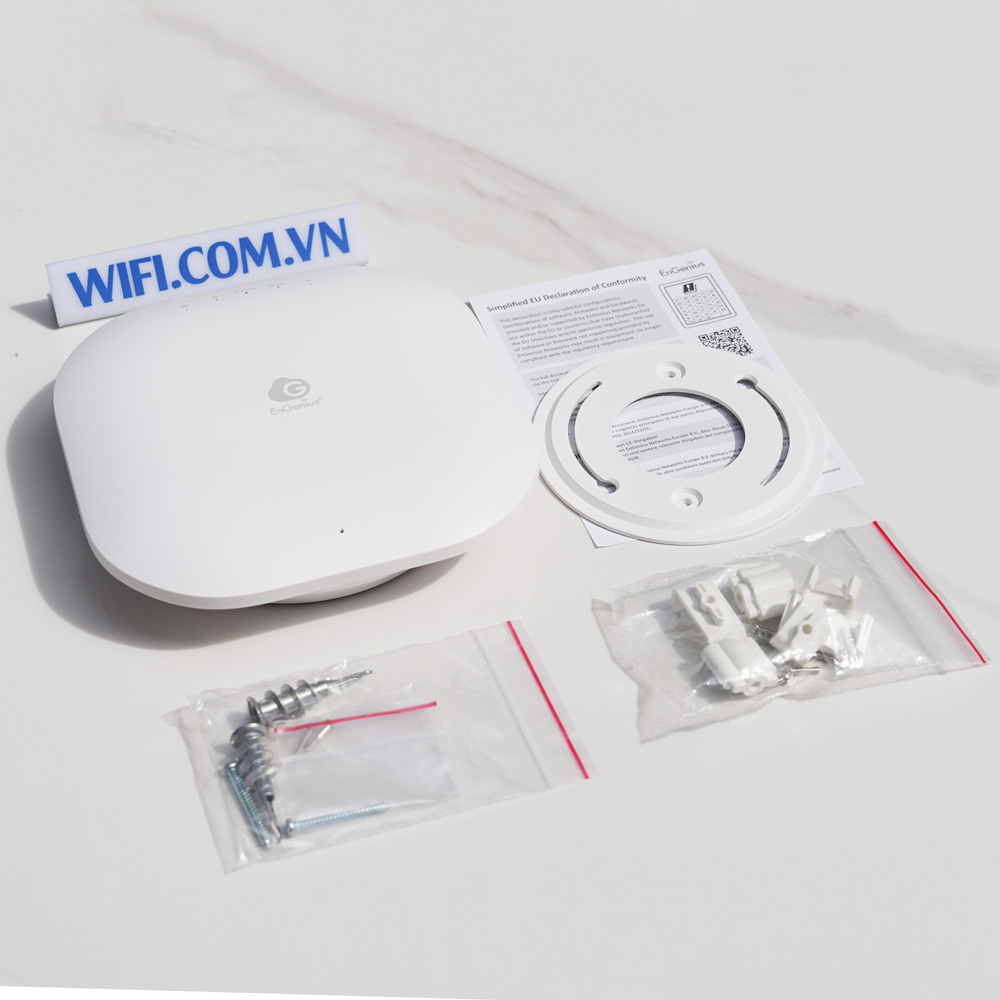

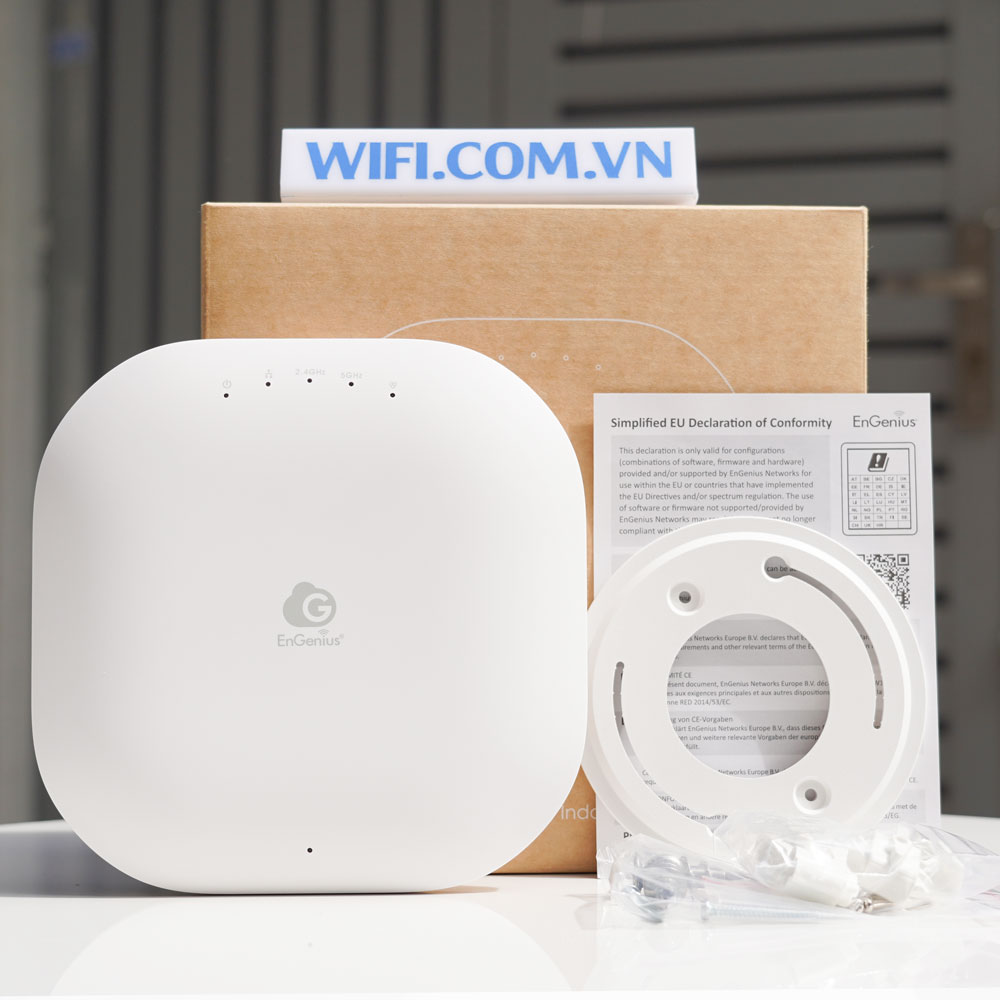

Package Contents

1 – ECW120 Cloud Managed Indoor Access Point

1 – T-Rail Mounting Kit

1 – Ceiling and Wall Mount Screw Kit

1 – Mounting Bracket

1 – Quick Installation Guide

Certifications

CE, FCC, IC
