MÔ TẢ SẢN PHẨM

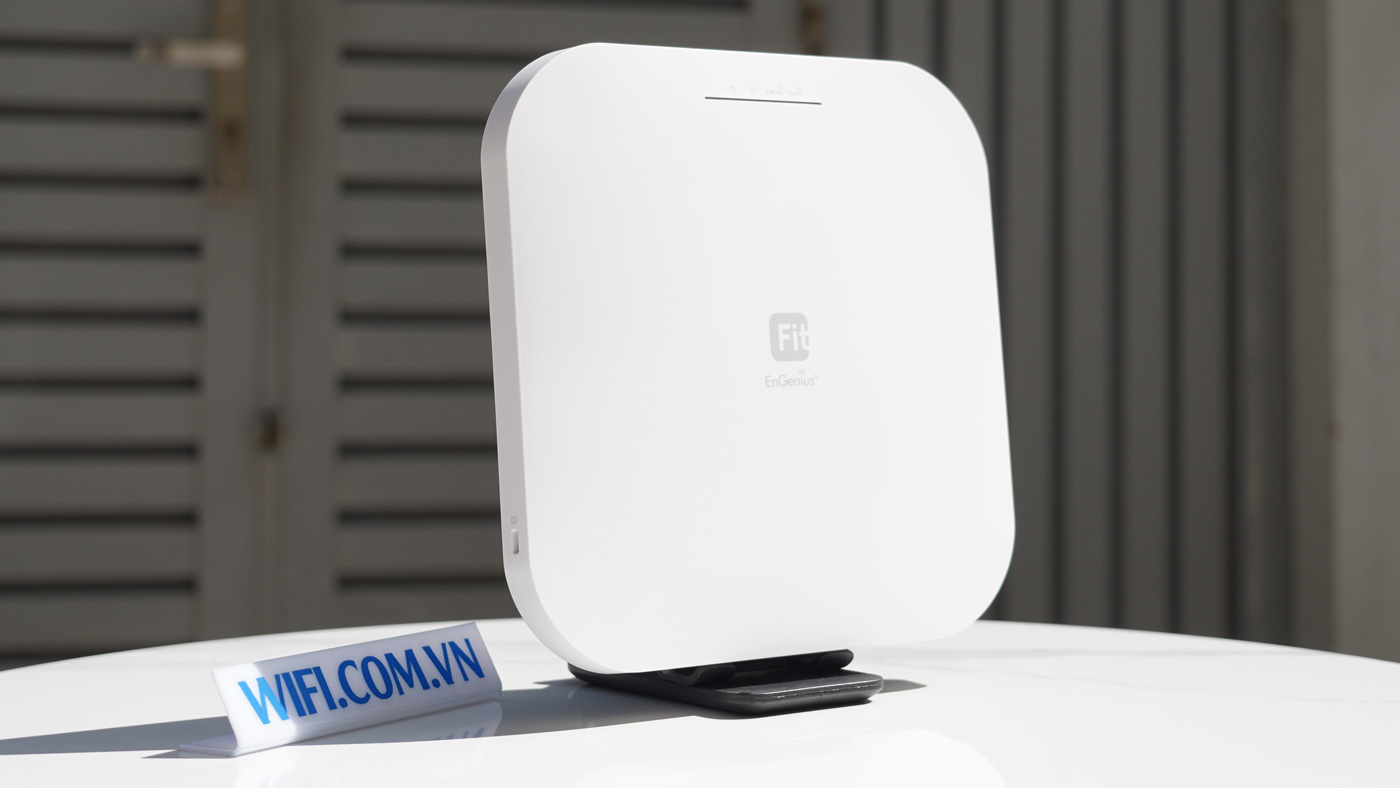

Access Point EWS276-FIT | Simple • Secure • Smart
*Tính năng và đặc điểm nổi bật:
- Wifi 6 chuẩn AX tốc độ 2.400Mbps ở băng tần 5GHz & 1.148Mbps ở băng tần 2,4GHz.
- 1 cổng Ethernet 2,5Gb, hỗ trợ PoE+(802.3at) & 48V để lắp đặt trên 100 mét và ngoài ra có thể cấp nguồn DC 12V/2A.
- Công nghệ OFDMA và MU-MIMO 4x4 cho khả năng truyền tải và thu phát hiệu quả.
- Quản lý và giám sát từ xa với FitXpress, FitController hoặc Fit Cloud-lite.
- EWS276 hỗ trợ chuẩn xác thực WPA3 và WPA2-AES.
- Hỗ trợ tối đa 8 SSIDs cho cả 2 băng tần, mỗi băng tần có khả năng chịu tải 128 users.
Dễ dàng quản lý với EnGenius Fit App
Smart Mesh, phủ sóng không góc chết
Sơ đồ sóng

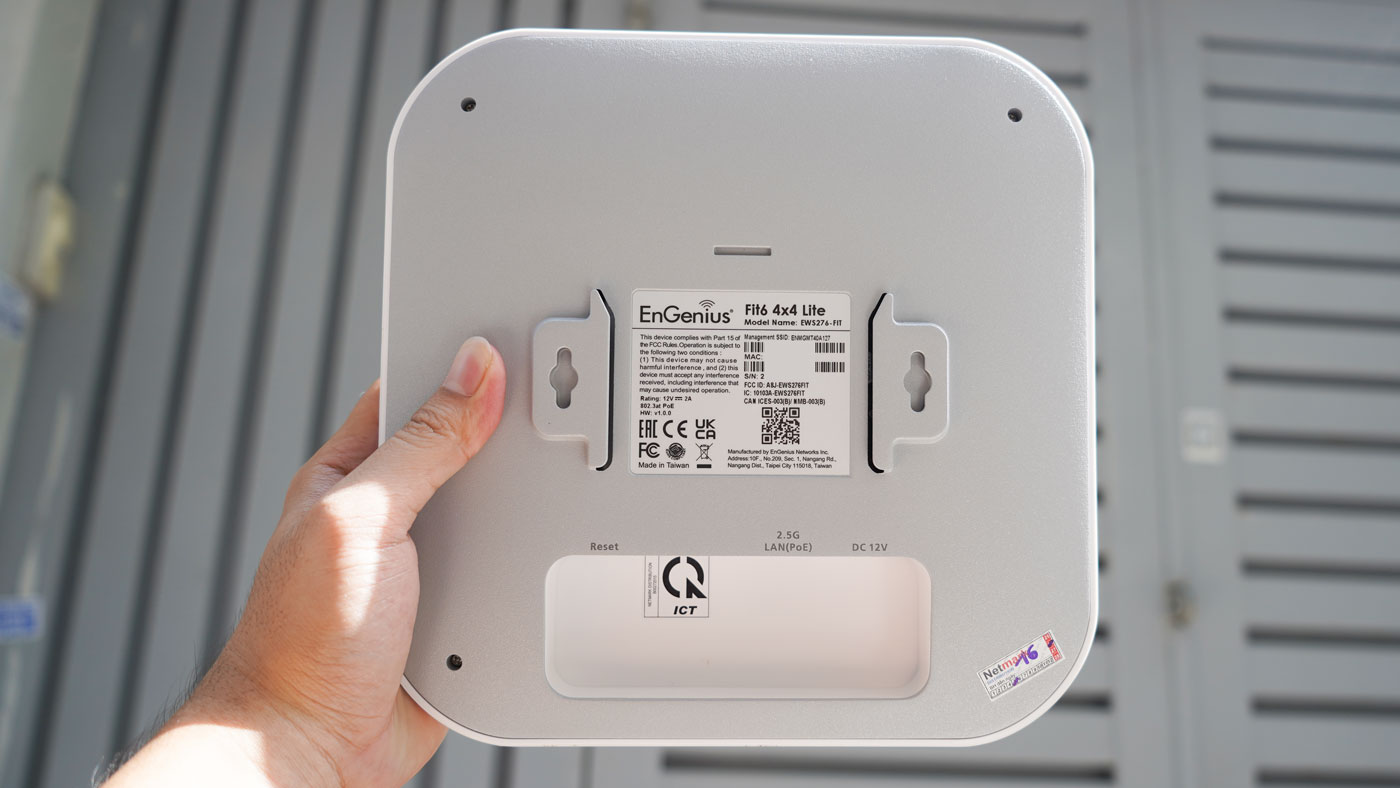

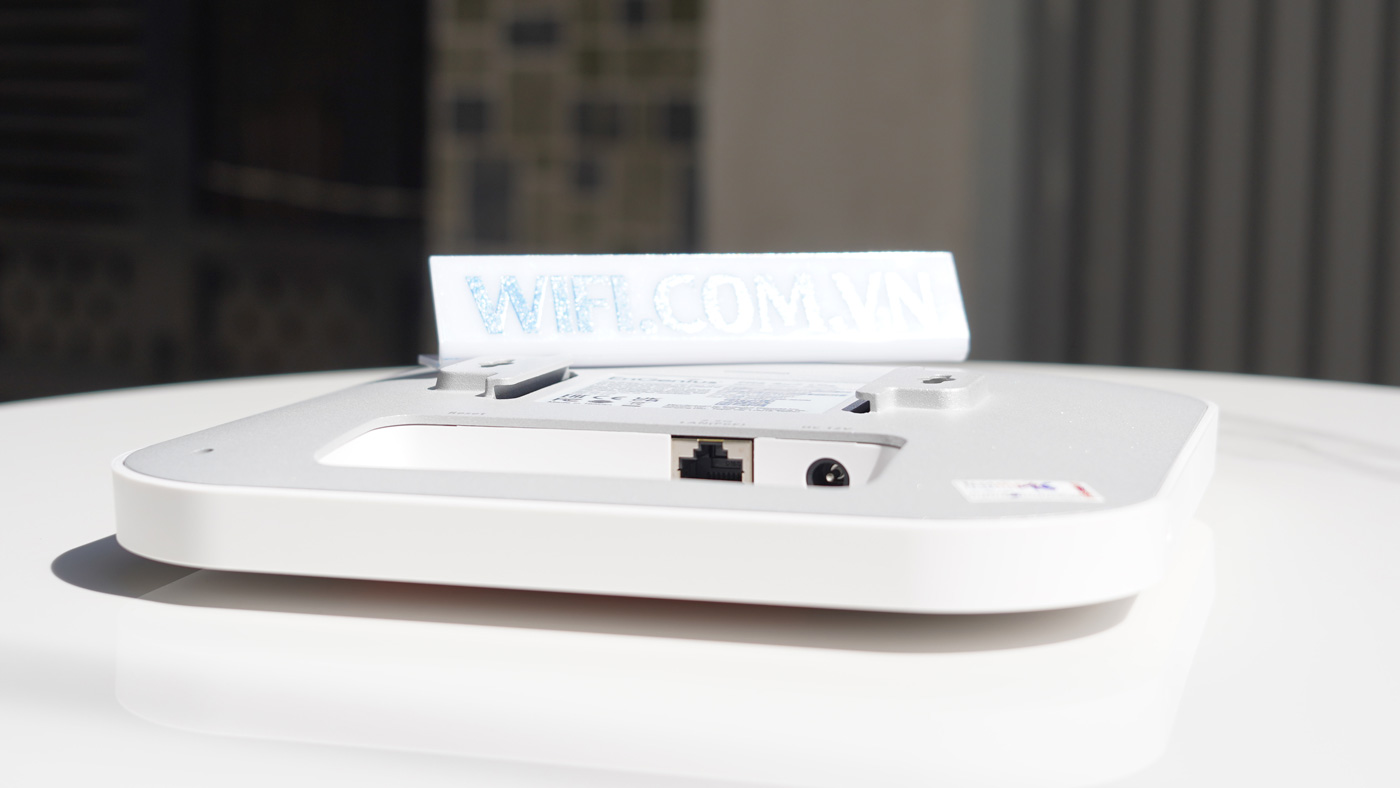

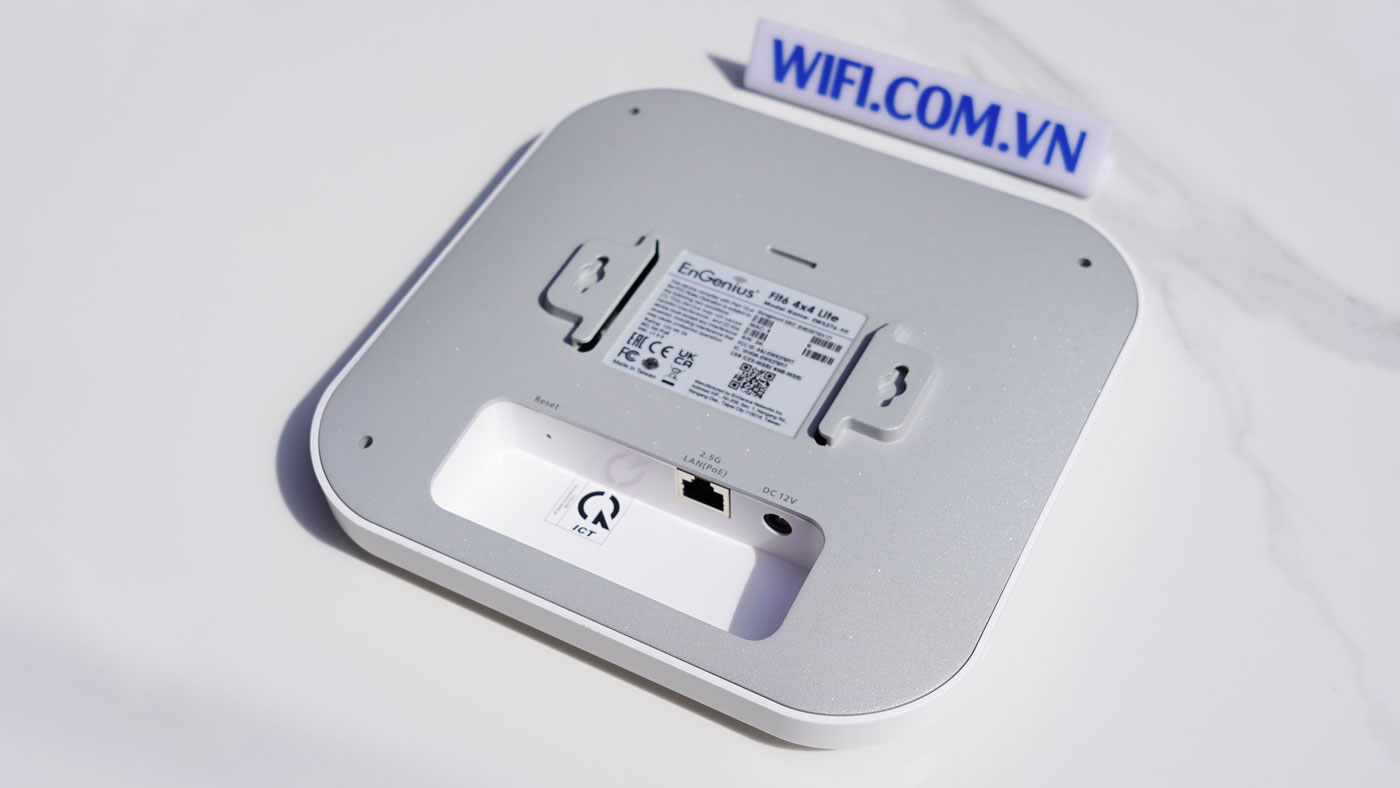

Hình ảnh giao diện cổng và đèn tín hiệu
ĐÁNH GIÁ VỀ SẢN PHẨM
Thông số kỹ thuật
Download EWS276-FIT datasheet ⇓
Technical Specifications | |
EWS276-Fit | |
Standards |
IEEE 802.11ax on 2.4 GHz IEEE 802.11ax on 5 GHz Backward compatible with 802.11a/b/g/n/ac |
Processor | Mediatek MT7986A Quad-core A53 2GHz |
Antenna |
4 x 2.4 GHz: 5 dBi 4 x 5 GHz: 5 dBi Integrated Omni-Directional Antenna |
Physical Interface |
1 x 10/100/1000/2500 N-BASE-T, RJ-45 Ethernet Port 1x DC Jack 1 x Reset Button |
LED Indicators |
1 x Power 1 x LAN 1 x 2.4 GHz 1 x 5 GHz |
Power Source |
Power-over-Ethernet: 802.3at Input 12VDC /2A |
Maximum Power Consumption | 17W |
Wireless & Radio Specifications | |
Operating Frequency | Dual-Radio Concurrent 2.4 GHz & 5 GHz |
Operation Modes | AP |
Frequency Radio |
2.4 GHz: 2400 MHz ~ 2482 MHz 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz |
Transmit Power |
Up to 23 dBm on 2.4 GHz Up to 23 dBm on 5 GHz (Maximum power is limited by regulatory domain) |
Tx Beamforming (TxBF) | Yes |
Radio Chains/Spatial Stream | 4x4:4 |
SU-MIMO | Four (4) spatial stream SU-MIMO for 2.4GHz and four spatial stream SU-MIMO for 5GHz up to 3,548 Mbps wireless data rate to a single wireless client device under both the 2.4 GHz and 5GHz radios. |
MU-MIMO |
Four (4) spatial streams Multiple (MU)-MIMO for up to 2400 Mbps wireless data rate to transmit to two (2) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously Four (4) multiple (MU)-MIMO for up to 1,148 Mbps wireless data rate to transmit to two streams MUMIMO 11ax capable wireless client devices under 2.4GHz simultaneously. |
Supported Data Rates (Mbps) |
802.11ax: • 2.4 GHz: 9 to 1148 (MCS0 to MCS11, NSS = 1 to 4) • 5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 4) 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 36, 48, 54 802.11n: 6.5 to 600 Mbps (MCS0 to MCS31) 802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4) |
Supported Radio Technologies |
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA) 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM) |
Channelization |
802.11ax supports high efficiency (HE)—HE 20/40/80 MHz 802.11ac supports very high throughput (VHT)—VHT 20/40/80 MHz 802.11n supports high throughput (HT)—HT 20/40 MHz 802.11n supports very high throughput under the 2.4GHz radio–VHT40 MHz (256-QAM) 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU |
Supported Modulation |
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11b: BPSK, QPSK, CCK |
Max Concurrent | 128 per radio |
Management | |
Multiple BSSID | 8 SSIDs for both 2.4GHz and 5GHz radios. |
VLAN Tagging |
Supports 802.1q SSID-to-VLAN Tagging Cross-Band VLAN Pass-Through Management VLAN |
Spanning Tree | Supports 802.1d Spanning Tree Protocol |
QoS (Quality of Service) |
Compliant with IEEE 802.11e Standard WMM |
SNMP | v1, v2c, v3 |
MIBzz | I/II, Private MIB |
Wireless Security |
WPA3 WPA2 Enterprise (AES) WPA2 AES-PSK Hide SSID in Beacons MAC Address Filtering, up to 32 MACs per SSID for standalone mode MAC Address Filtering, up to 256 MACs per SSID for managed mode Wireless STA (Client) Connected List SSH Tunnel Client Isolation |
Environment & Physical | |
Temperature Range |
Operating: 32ºF~104ºF (0ºC~40ºC) Storage: -40ºF~176 ºF (-40ºC~80ºC) |
Humidity (non-condensing) |
Operating: 90% or less Storage: 90% or less |
Dimensions & Weights | |
Device EWS276-Fit |
Weight: 1.26 lbs. (0.57 kg) Length: 8.10" (205.7 mm) Width: 8.10" (205.7 mm) Height: 1.31" (33.2 mm) |
Packaging |
Weight: 1.92 lbs. (0.87 kg) Length: 9.72" (247 mm) Width: 9.72" (247 mm) Height: 3.43" (87 mm) |
Master Carton |
Weight: 22.18 lbs. (10.06 kg) Length: 20.39" (518 mm) Width: 18.03" (458 mm) Height: 11.26" (286 mm) |
No. of product boxes per master carton | 10 units |

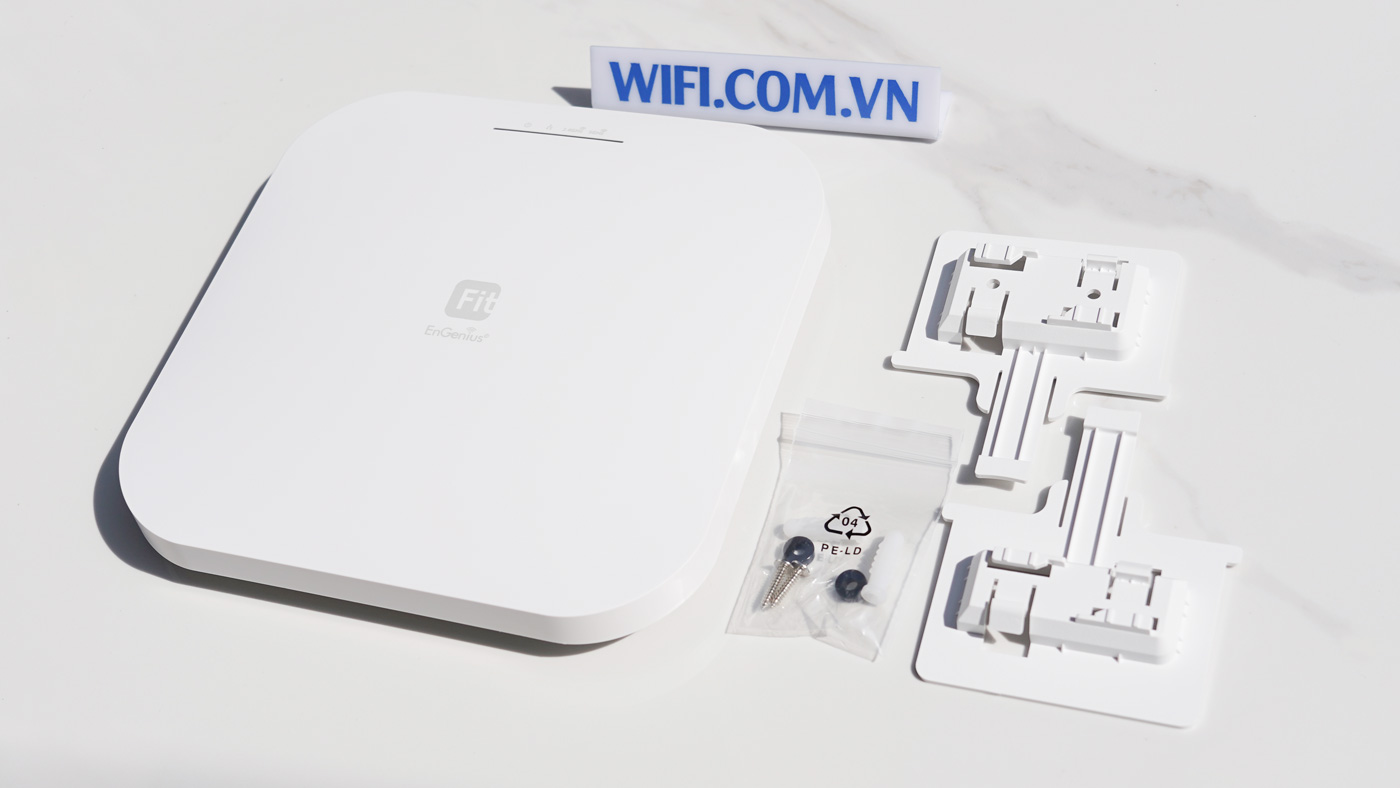

Package Contents |
1 - EWS276-Fit Cloud Managed Indoor Access Point 1 – Ceiling Mount Base (9/16” Trail) 1 – Ceiling Mount Base (15/16” Trail) 1 - Ceiling and Wall Mount Screw Kits Quick Start Guide QR Code Mobile App QR Code |
RoHS | Yes |
Regulatory Compliance | FCC, CE, IC, UKCA |
Warranty | 1 Year |
