MÔ TẢ SẢN PHẨM

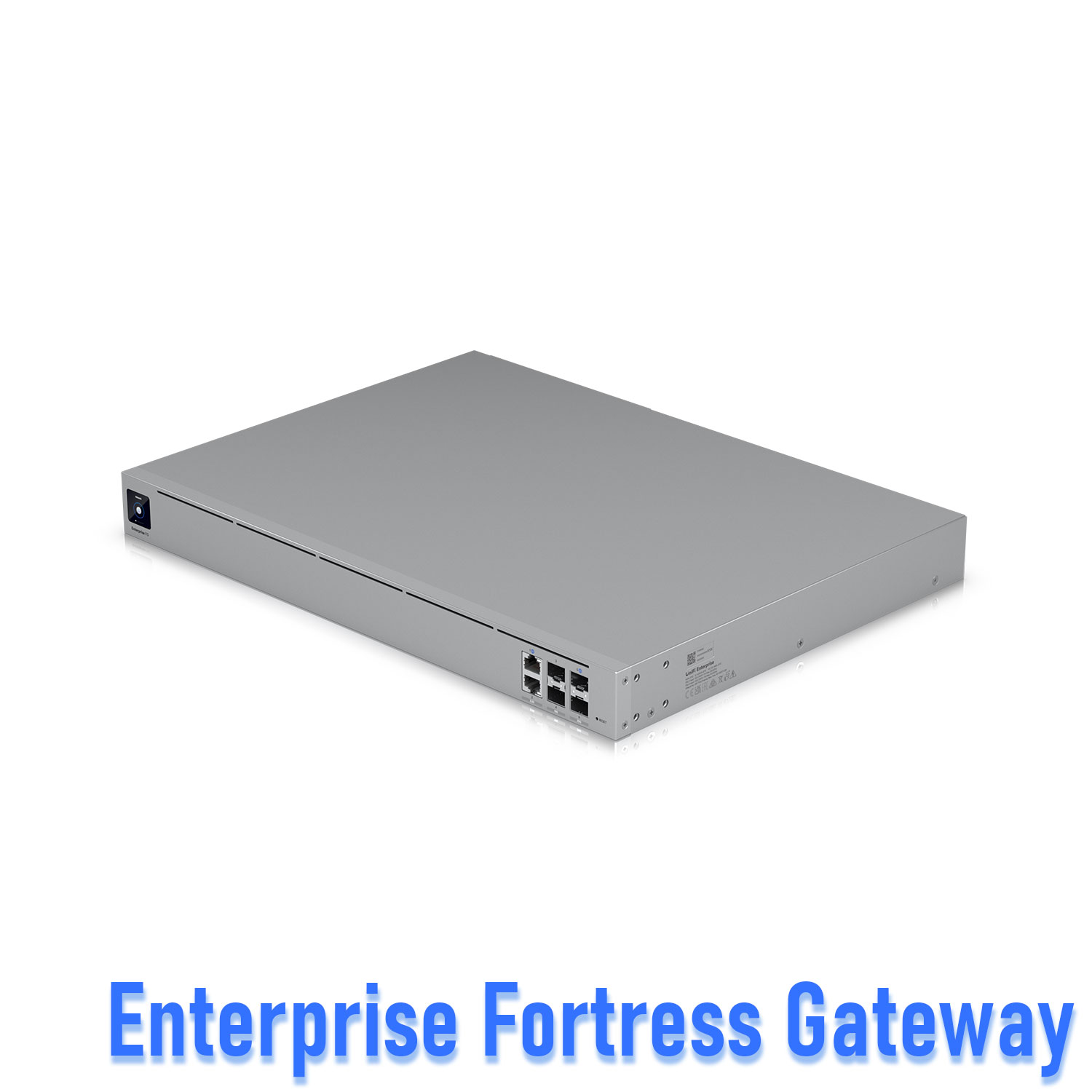

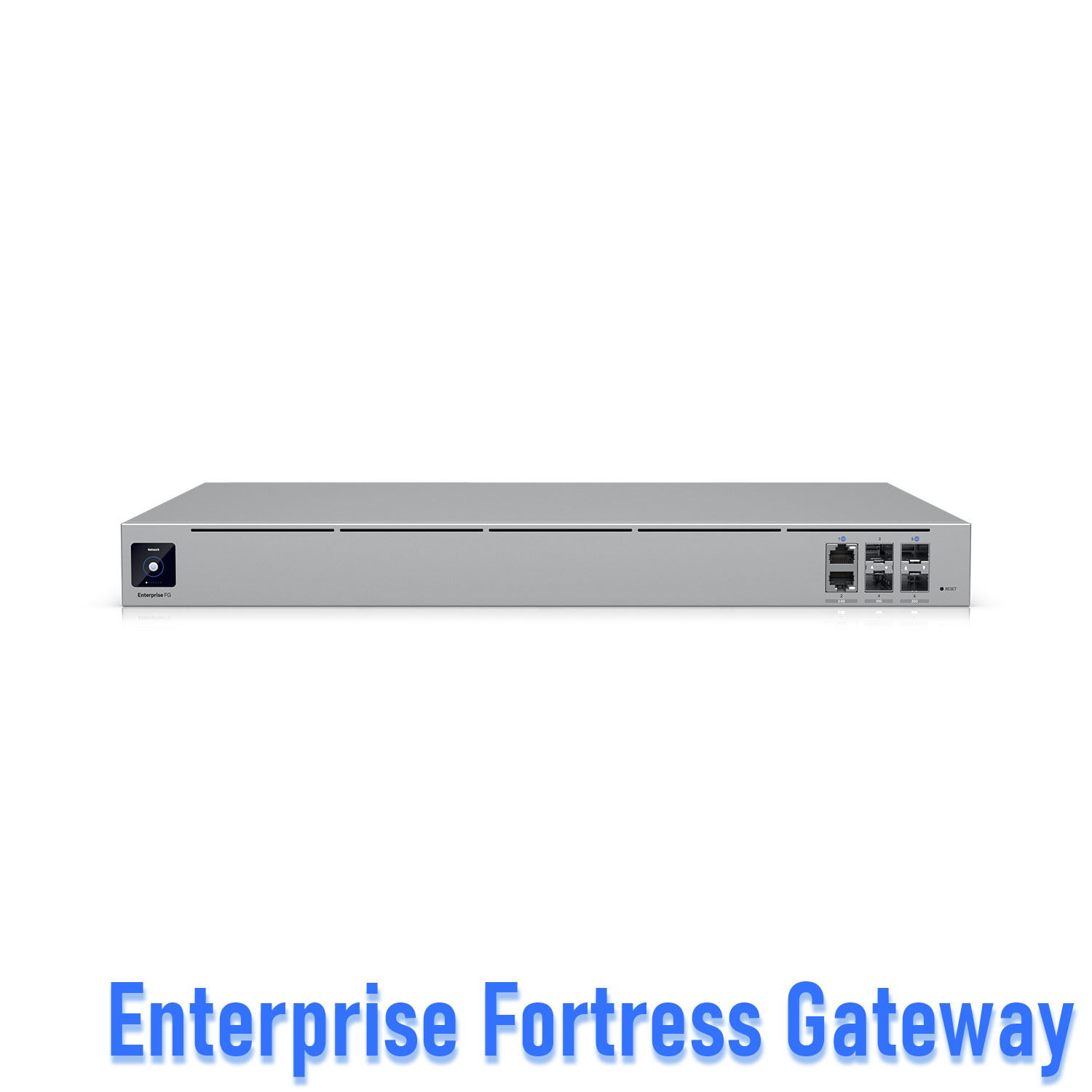

Cloud Gateway 25G hỗ trợ 500+ thiết bị Unifi / 5000+ user, định tuyến 12,5 Gbps với IDS/IPS, chế độ Shadow Mode HA cho khả năng chuyển đổi dự phòng tự động không lo gián đoạn kết nối.
ĐÁNH GIÁ VỀ SẢN PHẨM
Thông số kỹ thuật
| Mechanical | |
| Dimensions | 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8") |
| Weight | 6.5 kg (14.3 lb) |
| Enclosure material | Aluminium CNC, SGCC steel |
| Hardware | |
| Processor | 18-core ARM® v8.2 at 2 GHz |
| System memory | 16 GB DDR4 DIMM |
| Management interface | Ethernet Bluetooth |
| Networking interface | (2) 25G SFP28 ports (2) 10G SFP+ ports (2) 2.5 GbE RJ45 ports Map any (2) interfaces to WAN |
| Power method | (1) Universal AC input, 100—240V AC, 7A Max., 50/60 Hz |
| Power supply | (2) Hot-swappable 150W CRPS |
| Supported voltage range | 100–240V AC |
| Max. power consumption | 82W |
| ESD/EMP protection | Air: ± 8kV, contact: ± 4kV |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient operating temperature | 0 to 40° C (22 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance | Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next-generation security | Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking | License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support |
| Capacity | |
| UniFi devices | 500+ |
| Client devices | 5,000+ |
| Concurrent sessions | 1 million |
| New sessions / sec | 71,000 |
| SSL/TLS inspection concurrent sessions | 10,000 Limiting to 5,000 concurrent sessions is recommended if the gateway is passing significant traffic. This can be achieved by restricting which VLANs and domains pass through NeXT AI Inspection, such as only including search engine and LLM queries on employee devices. |
| IDS/IPS signatures | 80,000+ With Enhanced Threat Updates. |
| Routing Throughput | |
| Firewall | 23.5 Gbps |
| IDS/IPS | 12.5 Gbps |
| Measured with iPerf3 on DHCP WAN. Performance may be reduced with PPPoE depending on ISP implementation | |
| VPN Server Single User Throughput | |
| UniFi Identity | 1.2 Gbps |
| Teleport | 1.2 Gbps |
| WireGuard | 1.2 Gbps |
| OpenVPN | 210 Mbps |
| L2TP | 280 Mbps |
| Site-to-Site VPN Single Tunnel Throughput | |
| Site Magic | 1.1 Gbps |
| OpenVPN | 120 Mbps |
| IPsec | 580 Mbps |
| VPN Client Single Tunnel Throughput | |
| WireGuard | 980 Mbps |
| OpenVPN | 180 Mbps |
| LEDs | |
| Ethernet | White: Link/activity |
| SFP+ | White: Link/activity |
| CRPS | Off: No AC power present Steady white: AC power and DC output active Flashing white: AC power present Steady red: AC power lost/failure events Flashing red: Warning events |
| Software | |
| Mobile app | UniFi iOS™:Version 10.16.2 and later UniFi Android™: Version 10.17.2 and later |
