MR6110-1TLAUS

Technology / Bands

• LTE CAT 19
• 5G Sub-6: n5/n7/n28/n78
• LTE: B1,B3,B7,B28
• 3G: B1,B5Đen

Chipset

• Qualcomm SDX62

WiFi

• AX3600 max throughput (PHY)
- 2.9Gbps on 5GHz***
- 700Mbps on 2.4GHz

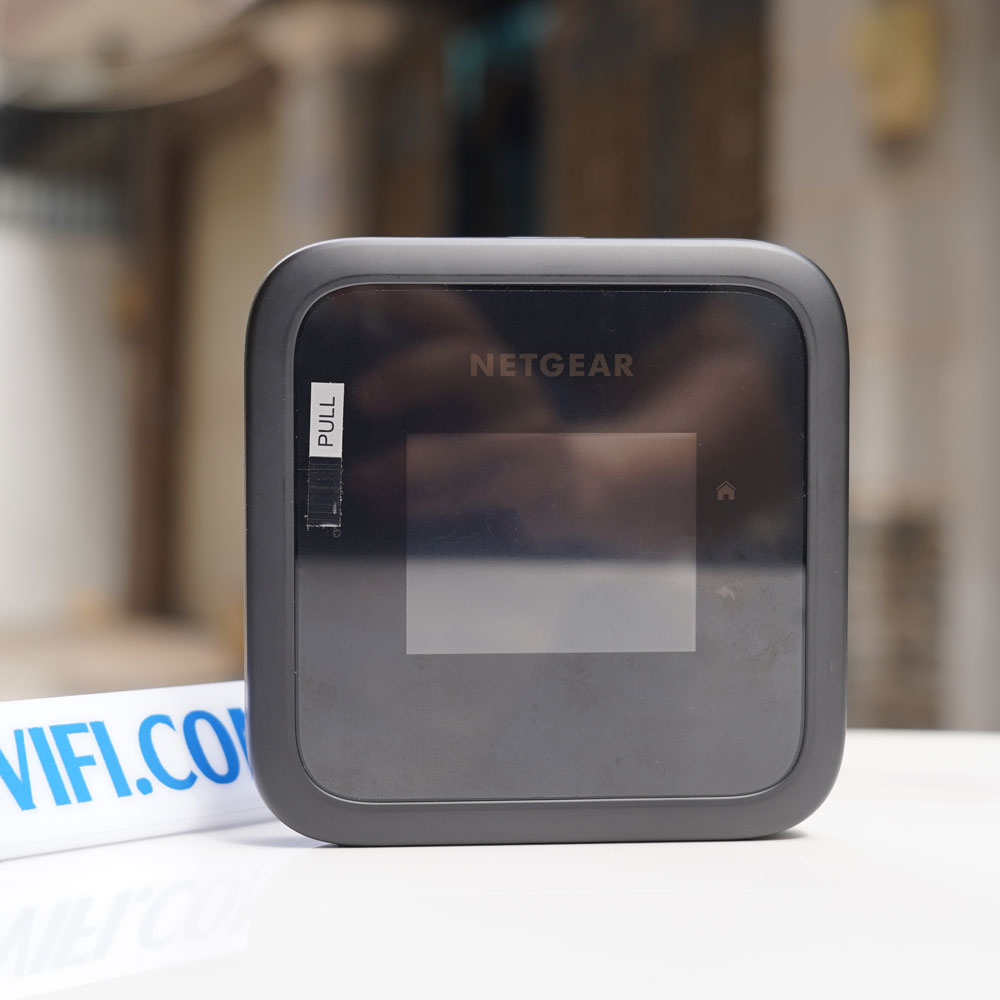

External Display

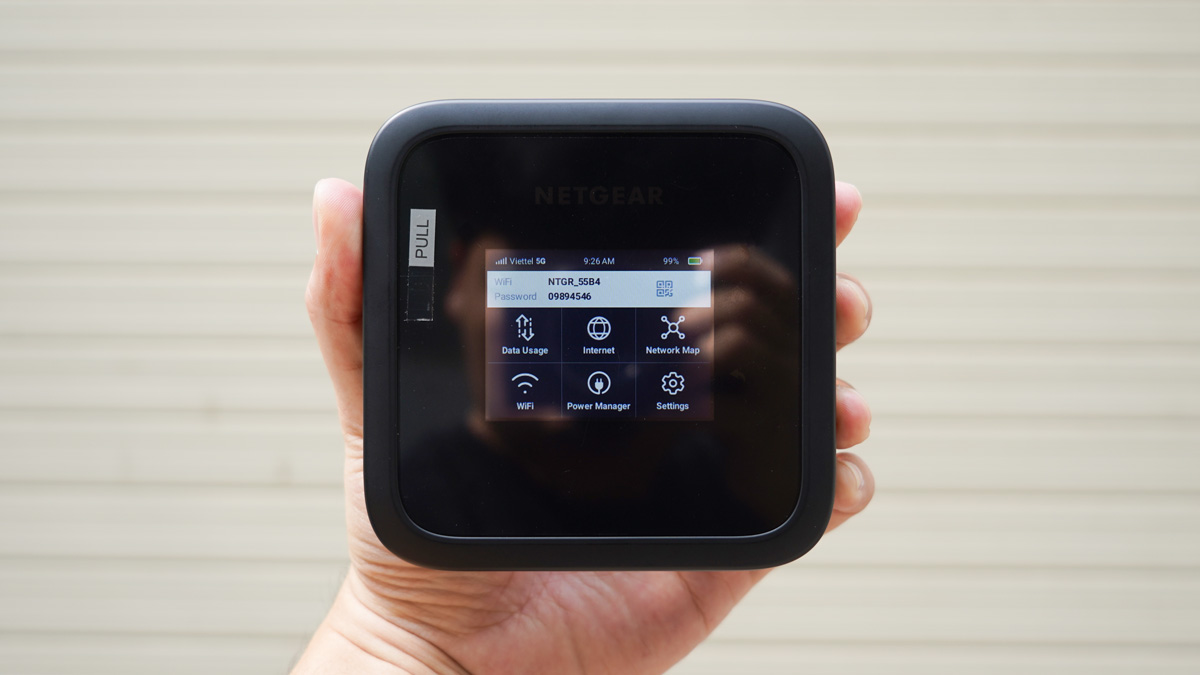

• 2.4” touch LCD panel

Battery

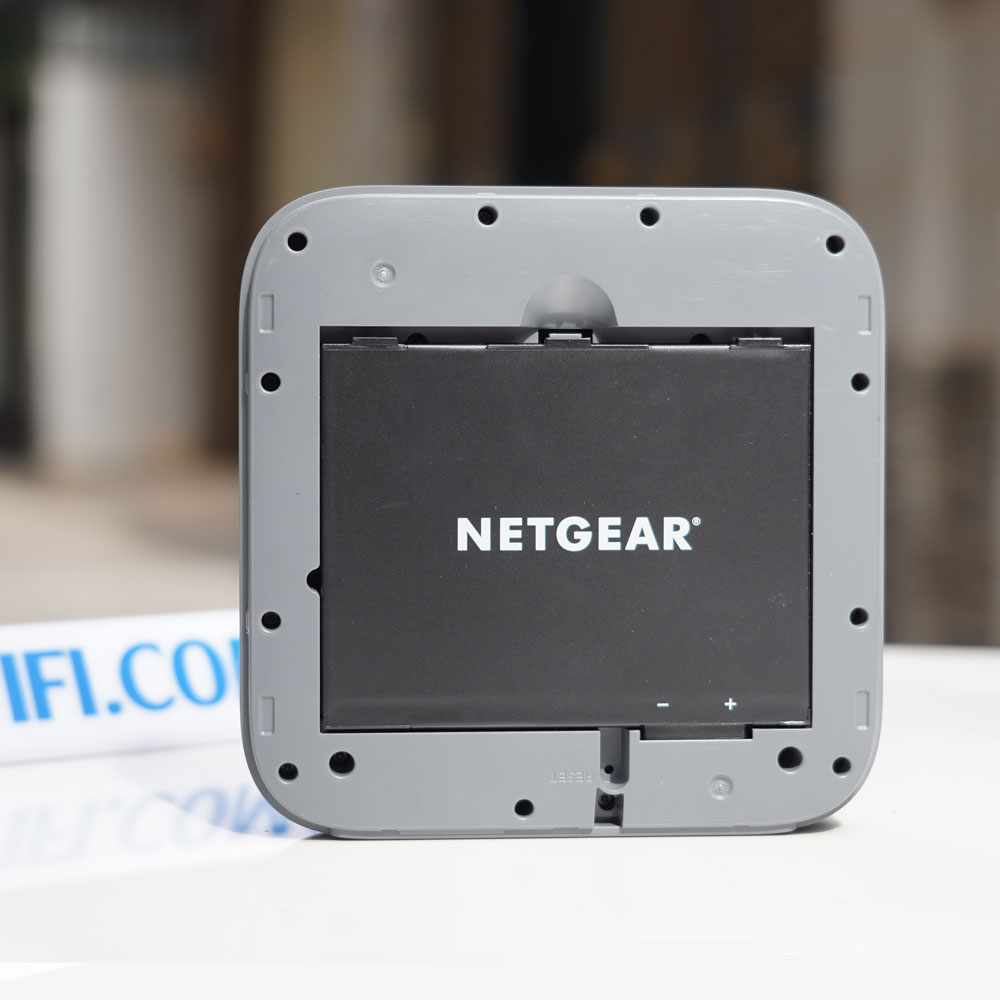

• 5040mAh battery

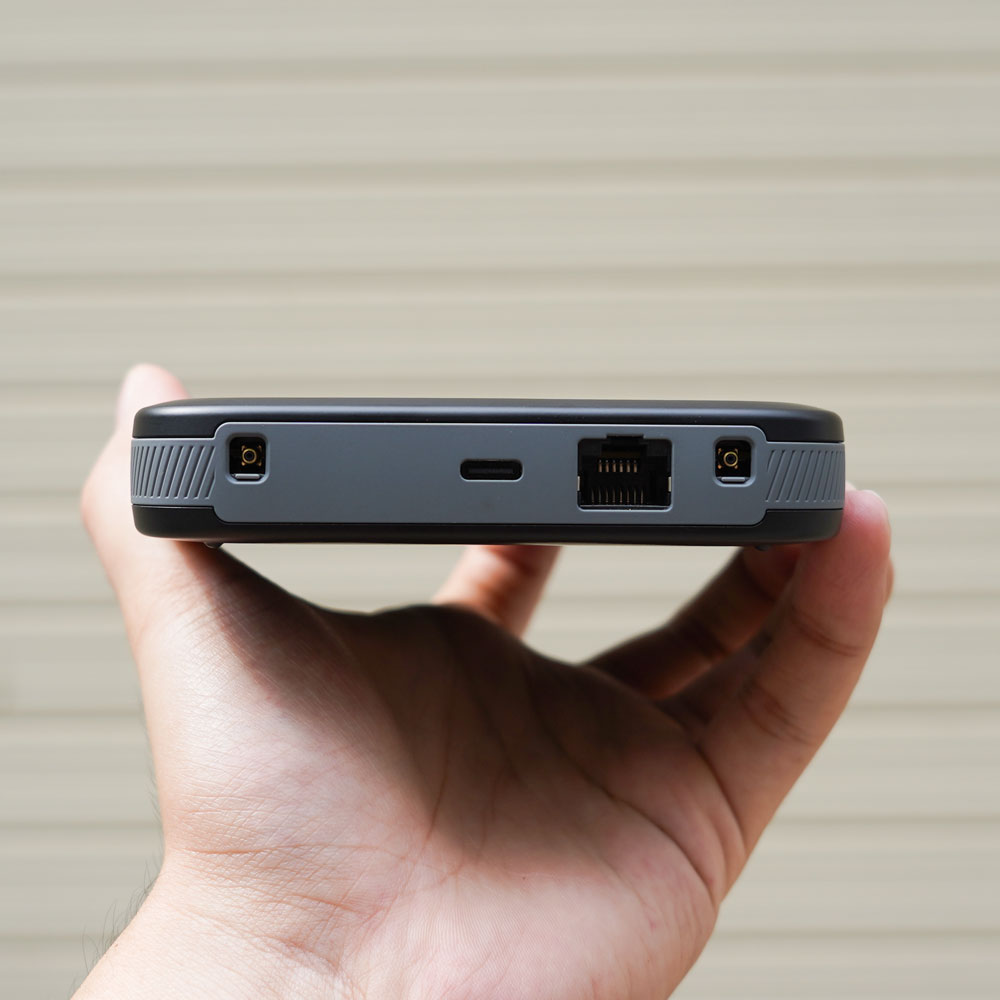

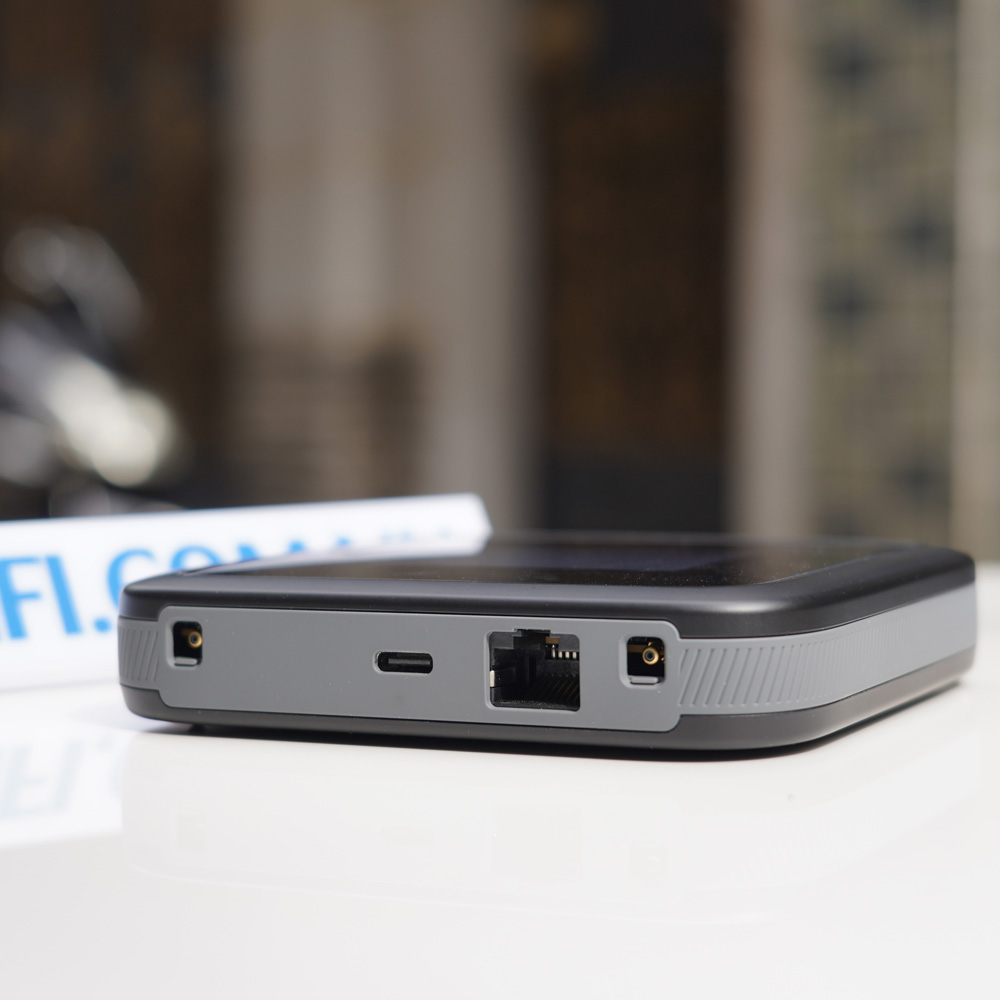

External Ports

• One (1) USB Type-C
• One (1) 1Gbps Ethernet**
• Two (2) TS9 RF ports

Key Features

• Carrier Aggregation
 - Up to 5x Carrier Aggregation on LTE (CA)
 - Up to 5x Carrier Aggregation on LTE+5GNR (ENDC)
• Increase network performance and reduce interference with 802.11ax (WiFi 6), 2x2 MIMO and 2.4/5GHz dual band**
• Latest 5G technology: 5GNR Sub 6GHz (N)SA
• Secure mobile Internet to deliver incredible download speeds; 5G-enabled with LTE fallback
• Supports LTE CAT 19, LTE Advanced Pro, 4x4 MIMO, 256-QAM

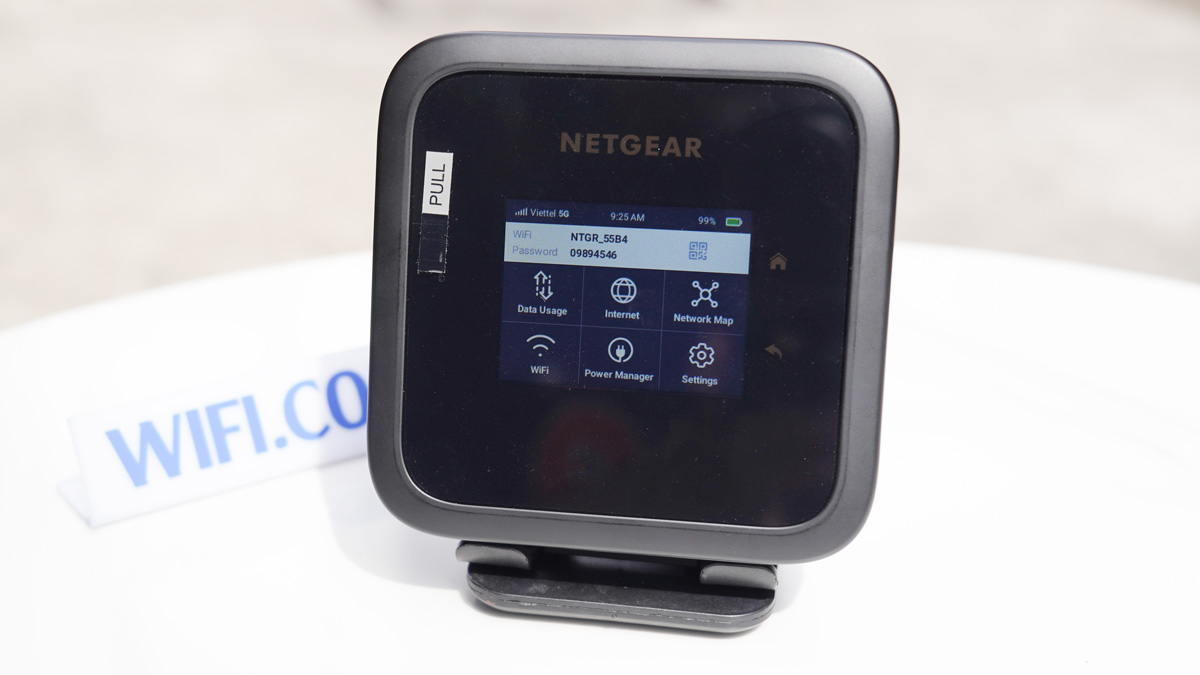

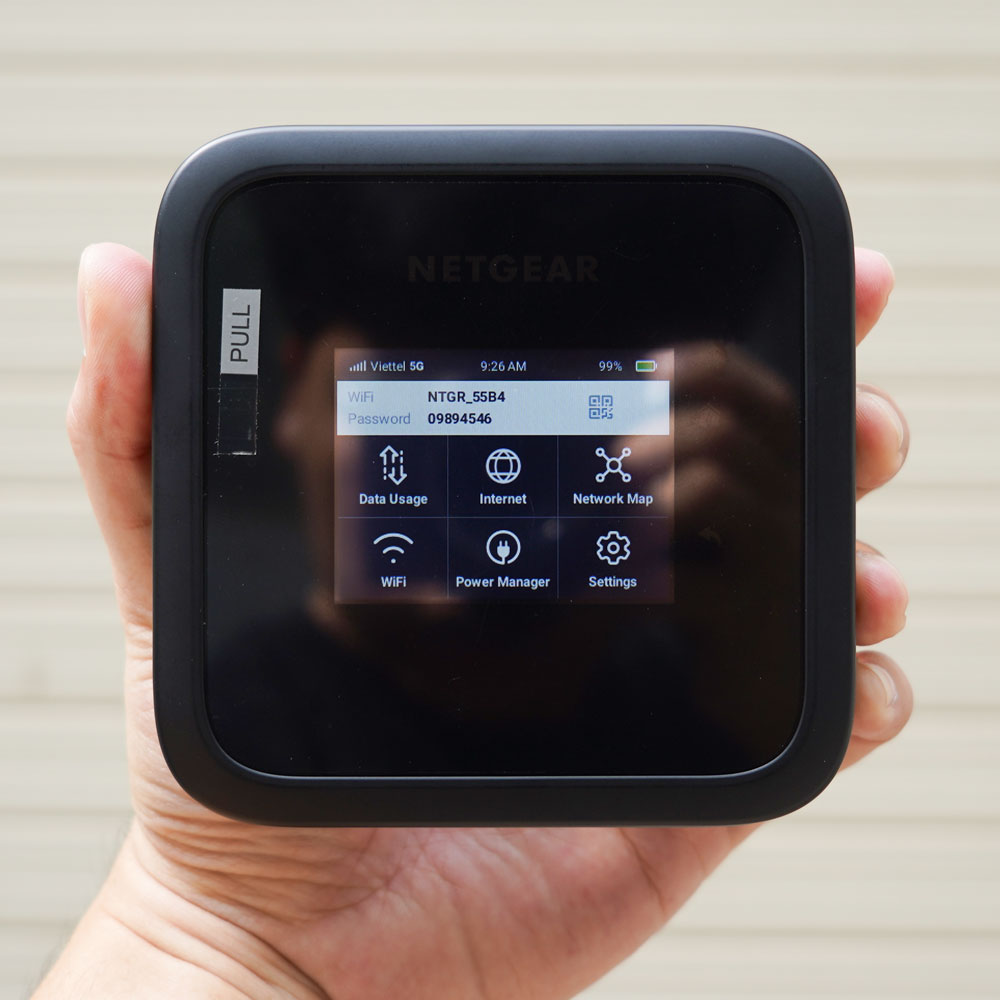

• 2.4" LCD color touch screen interface
• Travel router with WiFi/Ethernet offloading capabilities
• No-battery operation option, just plug in power adapter
• Always-on connection you can count on and connect up to 32 WiFi devices
• Simple, intuitive app-driven user experience to monitor data usage, manage device and network settings
• Powerful and long-lasting battery. Use Power Management settings to help manage battery usage time
• Two TS-9 connectors available for use with external 5G/4G/3G antennas
• Simple setup with no software to install – just power on and connect
• For always-on WiFi, seamlessly switch to 5G/4G when other Internet is unavailable or interrupted
• IPV6 support
• Insight upgradeable for remote fleet management support
• IPWAN framed route support

Security

• WiFi security
 - WPA™ - Personal
 - WPA2™ - Personal
 - WPA3™ - Personal
• Protected management frames
• Guest WiFi privacy separation
• Wi-Fi Protected Setup™
 - 2.4GHz, 5GHz - Concurrent
 - PIN
 - Push-button (PBC)
• WPS on/off control
• WiFi on/off control
• WiFi SSID broadcast on/off control
• VPN passthrough
• MAC address filtering
• Website filtering
• Port forwarding • Port filtering
• Password protected web admin portal
• Session timeout
• SIM security
 - PIN1
 - PIN2
 - PUK

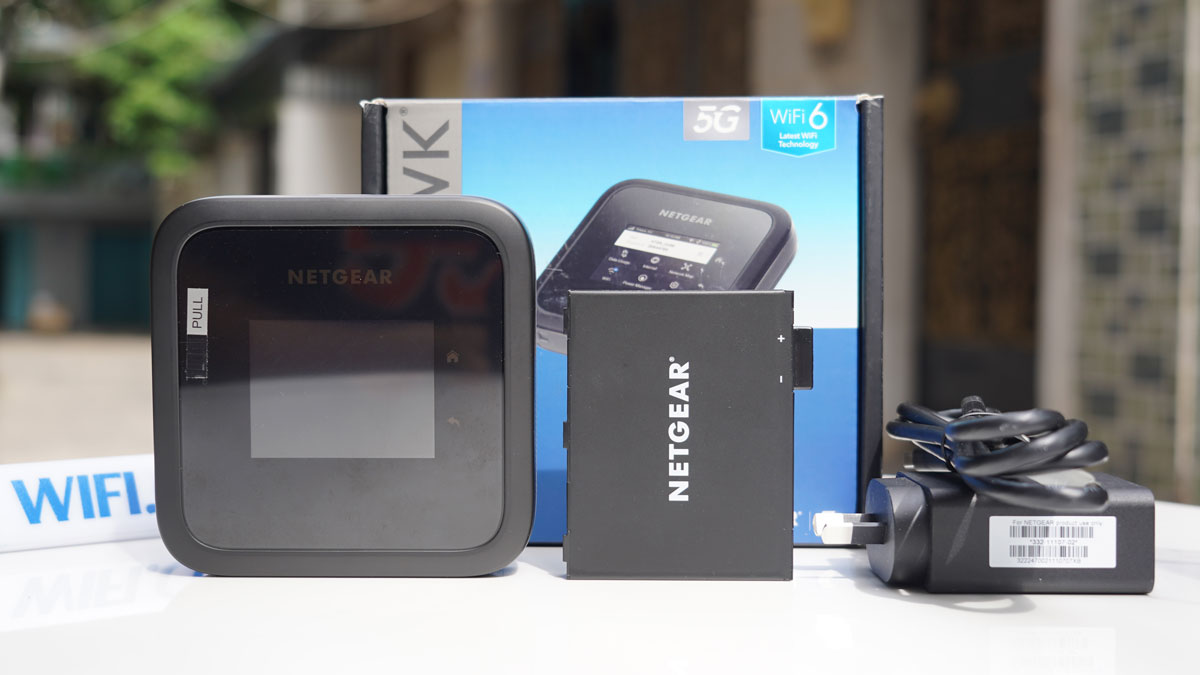

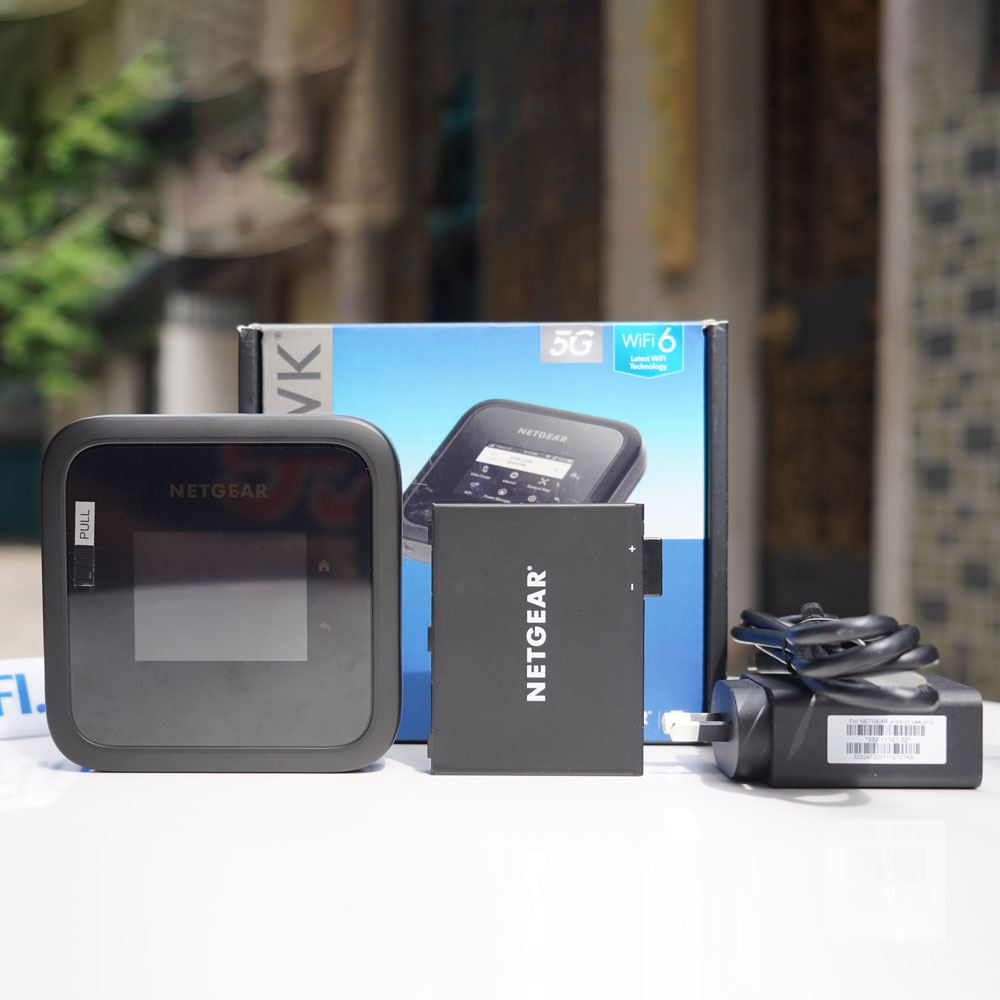

Package Contents

• Nighthawk® M6 Mobile Router device and battery
• Quick start guide
• Manufacturer warranty card
• USB Type-C cable
• AC adapter

Dimensions

• 105 x 105 x 21.5 mm
 (4.14 x 4.14 x .85 in)

Weight

• 252 g (.55 lb) with battery

*Actual throughput will vary depending on your internet subscription with your provider. The transfer rate may be reduced by the volume of network traffic or your service plan. The transfer rate may also be reduced by the service provider’s specific network implementation.
**To reduce power consumption and extend the battery life, this mobile router by default has Ethernet disabled.
***To reduce power consumption and extend the battery life, this mobile router is set by default to the WiFi 5GHz Only band
