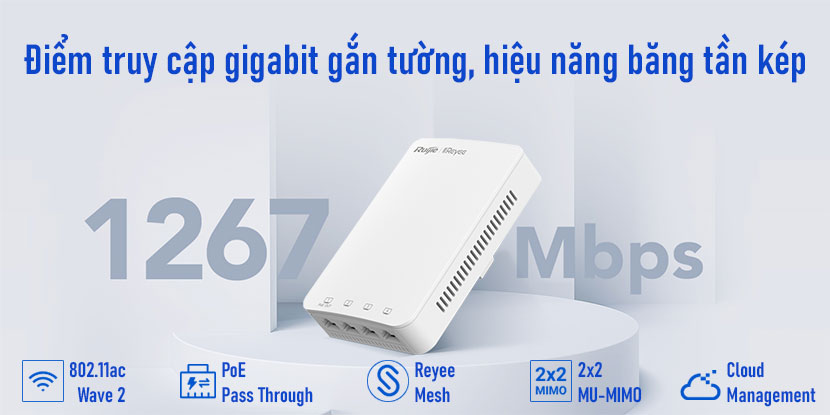

Model

RG-RAP1200(P)

Product Type

Wall AP

Wi-Fi Radio

6 GHz Wi-Fi

No

5 GHz Wi-Fi

Wi-Fi 4 (IEEE 802.11a/n) Wi-Fi 5 (IEEE 802.11ac)

2.4 GHz Wi-Fi

Wi-Fi 4 (IEEE 802.11b/g/n)

Operating band

IEEE 802.11b/g/n, 2.400 GHz to 2.4835 GHz IEEE 802.11a/n/ac, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz Note: Available bands vary with countries and regions. To use the preceding frequency bands, ensure that your country or region supports these frequency bands.

Radio design

Dual-radio 4 spatial streams • 2.4 GHz: 2 x 2 MIMO • 5 GHz: 2 x 2 MIMO

FEM

iFEM

6 GHz channel width

No

5 GHz channel width

Auto/20/40/80 MHz

2.4 GHz channel width

Auto/20/40 MHz

Maximum wireless data rate

1266 Mbps

6 GHz wireless data rate

No

5 GHz wireless data rate

866 Mbps

2.4 GHz wireless data rate

400 Mbps

Maximum transmit power

Frequency bands and maximum Effective Isotropic Radiated Power (EIRP): Note: Country specific restrictions apply. European Union & United Kingdom: 2400–2483.5 MHz, EIRP ≤ 20 dBm; 5150–5350 MHz, EIRP ≤ 23 dBm; 5470–5725 MHz, EIRP ≤ 30 dBm United States: 2400–2483.5 MHz, max output power ≤ 30 dBm & EIRP ≤ 36 dBm; 5150–5250 MHz, max output power ≤ 30 dBm & EIRP ≤ 36 dBm; 5250–5350 MHz, max output power < 24 dBm & EIRP ≤ 30 dBm; 5470–5725 MHz, max output power < 24 dBm & EIRP ≤ 30 dBm; 5725–5850 MHz, max output power ≤ 30 dBm & EIRP ≤ 36 dBm Myanmar: 2400–2483.5 MHz, EIRP ≤ 23 dBm; 5725–5825 MHz, EIRP ≤ 30 dBm Thailand: 2400–2483.5 MHz, EIRP ≤ 20 dBm; 5150–5350 MHz, EIRP ≤ 23 dBm; 5470–5725 MHz, EIRP ≤ 30 dBm; 5725–5825 MHz, EIRP ≤ 30 dBm Indonesia: 2400–2483.5 MHz, EIRP ≤ 27 dBm; 5150–5350 MHz, EIRP ≤ 23 dBm; 5725–5825 MHz, EIRP ≤ 23 dBm Egypt: 2400–2483.5 MHz, EIRP ≤ 20 dBm; 5150–5350 MHz, EIRP ≤ 23 dBm Vietnam: 2400–2483.5 MHz, EIRP ≤ 23 dBm; 5150–5350 MHz, EIRP ≤ 23 dBm; 5470–5725 MHz, EIRP ≤ 30 dBm; 5725–5850 MHz, EIRP ≤ 30 dBm

Maximum transmit power (6 GHz)

No

Maximum transmit power (5 GHz)

Combined power: 21 dBm (single-stream power: 18 dBm) Note: The transmit power varies according to regulations in different countries and regions.

Maximum transmit power (2.4 GHz)

Combined power: 21 dBm (single-stream power: 18 dBm) Note: The transmit power varies according to regulations in different countries and regions.

Coverage range

40 m² (430.56 square ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.

Modulation

OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, 64-QAM @ 48/54 Mbps DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

Receive sensitivity

11b: –91 dBm (1 Mbps), –88 dBm (5.5 Mbps), –85 dBm (11 Mbps) 11a/g: –89 dBm (6 Mbps), –80 dBm (24 Mbps), –76 dBm (36 Mbps), –71 dBm (54 Mbps) 11n: –83 dBm (MCS0), –65 dBm (MCS7), –83 dBm (MCS8), –65 dBm (MCS15) 11ac: 20 MHz: –83 dBm (MCS0), –57 dBm (MCS9) 11ac: 40 MHz: –79 dBm (MCS0), –57 dBm (MCS9) 11ac: 80 MHz: –76 dBm (MCS0), –51 dBm (MCS9)

Antenna

2.4 GHz: 2 built-in omnidirectional antennas 5 GHz: 2 built-in omnidirectional antennas Antenna gain (5 GHz): 2.00 dBi Antenna gain (2.4 GHz): 2.00 dBi

Port Specifications

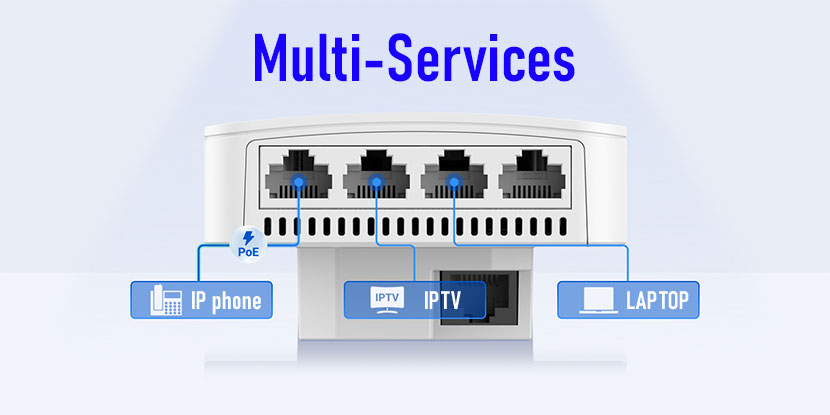

Number of 10/100/1000BASE-T ports

5

Reset button

1

LEDs

1 x system status LED

Power Supply and Consumption

Power supply

PoE/PoE+ Local power supply: No Dimensions of the DC connector: No

PoE In standard

● IEEE 802.3af (PoE) ● IEEE 802.3at (PoE+)

Number of PoE Out ports

1

PoE budget

4 W (when power source is IEEE 802.3af-compliant) 15.4 W (when power source is IEEE 802.3at-compliant)

Maximum power consumption

8 W (excluding PoE output)

Environment and Reliability

Operating temperature

0°C to 40°C (32°F to 104°F)

Storage temperature

–40°C to +70°C (–40°F to +158°F)

Operating humidity

5% RH to 95% RH (non-condensing)

Storage humidity

5% RH to 95% RH (non-condensing)

Mounting options

Junction box

IP rating

IP41

Surge protection

Ethernet port: ±2 kV for common mode

MTBF

250,000 hours

Certification and Regulatory Compliance

RoHS

Yes

Safety compliance

EN 62368-1

EMC

EN 55032, EN 55035, EN 61000-3-3, EN 61000-3-2, EN 301489-1, EN 301489-3, EN 301489-17

RF

EN 300 328, EN 301 893, EN 300 440

Certification

CE, FCC, CB, ISED, cTUVus

System Specifications

Flash memory

8 MB

RAM

128 MB

Software Specifications

Basic Configurations

AP mode: Yes Routing mode: Yes Internet access mode: Static IP address, Dynamic IP address, PPPoE

Interface

IPTV transparent transmission: Yes PPPoE clients: Yes IEEE 802.1Q VLAN: Yes

WLAN

Maximum number of associated wireless clients: 64 (2.4 GHz), 110 (5 GHz), 110 (2.4 GHz and 5 GHz enabled) Recommended number of associated wireless clients: 16 (2.4 GHz), 64 (5 GHz), 80 (2.4 GHz and 5 GHz enabled) Maximum number of SSIDs: 8 Radio-based client limiting: Yes Layer 2 isolation: No OFDMA: No WMM: Yes DFS: Yes MLO: No 4K-QAM: No Different SSIDs for the same VLAN: Yes Enabling/Disabling MLO: No AP load balancing: No Beamforming: Yes 802.11k/v roaming: No Fast transition (802.11r): No Layer 2 roaming: Yes Layer 3 roaming: Yes AI roaming: Yes PSK authentication: Yes Static allowlist: Yes Adjusting the transmit power for beacon and probe frames: Yes Encryption mode (WPA-PSK, WPA2-PSK, WPA/WPA2-PSK): Yes OWE (Enhanced Open): Yes WPA3-SAE: Yes WPA2-PSK/WPA3-SAE: No Number of blocklists and allowlists based on MAC addresses (single SSID): 256 Number of global blocklists/allowlists: 256 Mesh management: Yes AP Mesh: Yes AP portal authentication: No Maximum number of devices that can be managed: 300 One-Click Network Optimization: Yes Static blocklist: Yes

IP Service

ARP binding: Yes IPv4 ping: Yes IPv6 ping: No Traceroute: Yes Static/Dynamic NAT: Yes DHCP server: Yes IPv6: No

Authentication

802.1X authentication: No

Network Management and Monitoring

Wireless repeater mode: Yes Web login information: Single-device login address: 10.44.77.254; Network-wide login address: 10.44.77.253; Default password: admin Network-wide configuration and management: Yes Ruijie Reyee App management: Yes eWeb management: Yes Ruijie Cloud management: Yes SNMP: No Configuration synchronization among the app, eWeb, and Ruijie Cloud: Yes Displaying device information on Ruijie Cloud: Yes

Package Contents

1 x AP 2 x Cross pan head screws (M4 x 40 mm) 1 x User Manual 1 x Warranty Card Accessories: Power adapter: No
