| Giá khuyến mại: | Liên hệ |
| Bảo hành: | 1 năm 1 đổi 1 chính hãng |
KHUYẾN MÃI
Hỗ trợ & Tư Vấn TP.HCM
Hỗ trợ & Tư Vấn Hà Nội
MÔ TẢ SẢN PHẨM
WiFi 7 BE ba băng tần: 2.4 GHz | 5 GHz | 6 GHz

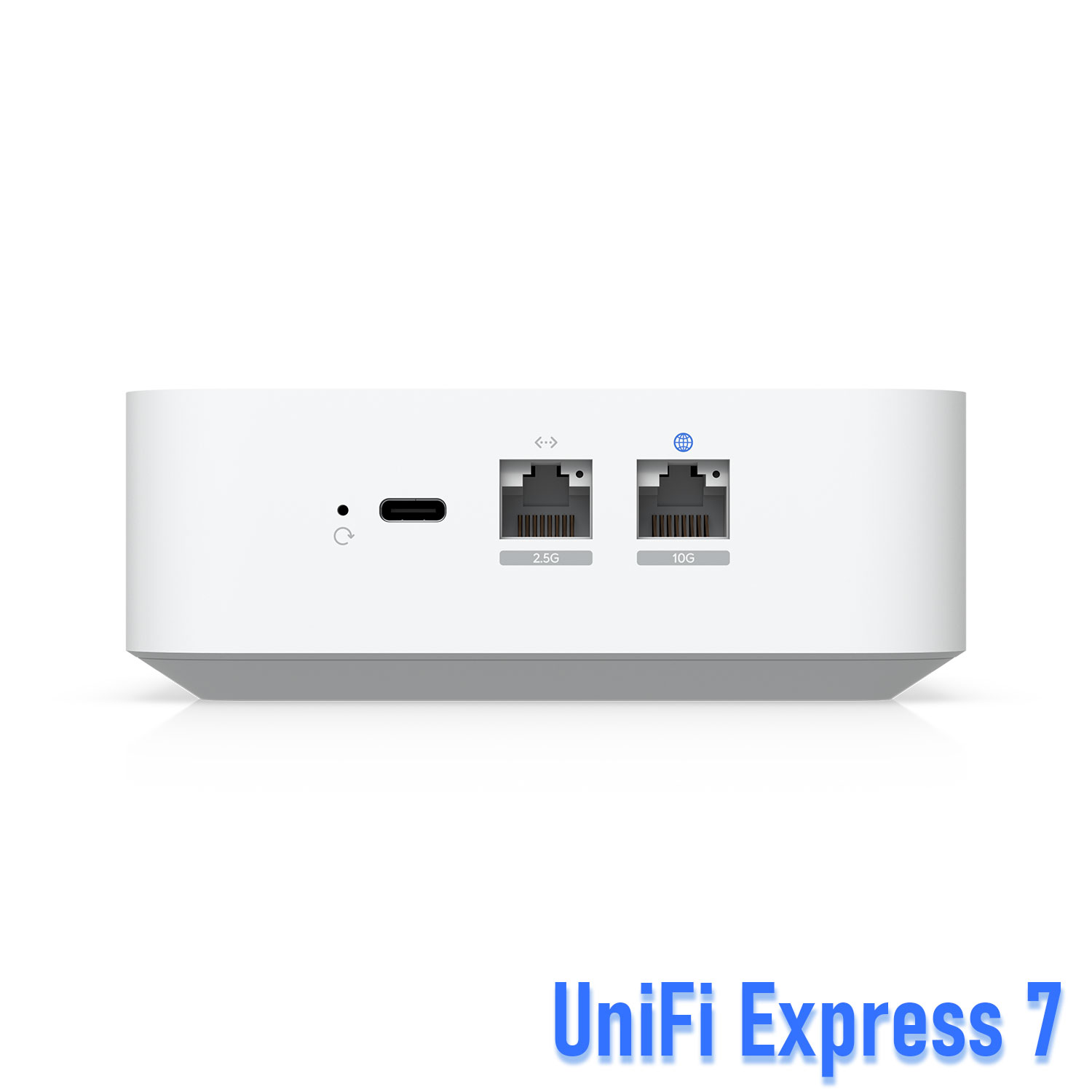

Giao diện cổng: 1 cổng LAN Ethernet 2.5Gb & 1 cổng WAN Ethernet 10Gb & 1 nút factory reset.
Antenna MIMO 2x2 6GHz - 6dBi, 2x2 5GHz - 7dBi, 2x2 2.4GHz - 4dBi
ĐÁNH GIÁ VỀ SẢN PHẨM
Thông số kỹ thuật
| Mechanical | |
| Dimensions | 117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 5 |
| Coverage Area | 160 m² (1,750 ft²) |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |
| Mounting | Ceiling, Wall (Plastic Mounting Plate included) |
| Power Method | PoE |
| Performance | |
| MIMO | 5 GHz: 2 x 2 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 5 GHz: 4.3 Gbps (BW160) 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain | 5 GHz: 6 dBi 2.4 GHz: 4 dBi |
| Max. TX Power | 5 GHz: 27 dBm 2.4 GHz: 26 dBm |
| Supported Data Rates | 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160) 802.11ax (WiFi 6): 7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition Management | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k Radio Resource Management (RRM) | ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Hotspot Portal | Custom Branding Landing Page |
| Voucher Authentication | ✓ |
| Payment-Based Authentication | ✓ |
| External Portal Server Support | ✓ |
| Password Authentication | ✓ |
| Guest Network Isolation | ✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Hardware | |
| Max. Power Consumption | 14 W |
| Includes PoE Adapter | - |
| Supported Voltage Range | 42.5—57V DC |
| Networking Interface | 1 x 2.5 GbE RJ45 port |
| Weight | 448 g (15.8 oz) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, galvanized steel (SGCC) |
| LEDs | System White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz) |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 50°C (-22 to 122°F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| Application Requirements | UniFi Network: Version 9.1.120 and later Mobile App: iOS™ version 10.20.2 and later, Android™ version 10.21.7 and later |
| Overview | |
| Dimensions | 117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67") |
| UniFi Application Suite | Network ✓ |
| Managed UniFi Devices | 30+ |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 1 |
| Default WAN Ports | (1) 10 GbE RJ45 |
| Port Layout | 2.5 GbE RJ45 1 (2.5G/1G/100M/10M) 10 GbE RJ45 1 (10G/5G/2.5G/1G/100M) |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Compact desktop |
| Coverage Area | 160 m² (1,750 ft²) |
| Security | |
| Stateful Firewall | ✓ |
| Application-Aware Layer 7 Firewall | ✓ |
| DPI & Traffic Identification | ✓ |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | ✓ |
| Content Filtering | ✓ |
| Intrusion Prevention (IPS/IDS) | ✓ |
| Ad Blocking | ✓ |
| IDS/IPS Signatures | 20,000+ with CyberSecure |
| VLAN/Subnet-based Traffic Segmentation | ✓ |
| VPN & SD-WAN | |
| License-Free SD-WAN | ✓ |
| Site-to-Site VPN | Site Magic ✓ |
| IPsec | ✓ |
| OpenVPN | ✓ |
| VPN Server | Identity Endpoint One-Click VPN ✓ Teleport Zero-Configuration VPN ✓ |
| WireGuard | ✓ |
| OpenVPN | ✓ |
| L2TP | ✓ |
| VPN Client | OpenVPN ✓ WireGuard ✓ |
| Networking | |
| Dynamic Routing | OSPF ✓ |
| Advanced QoS | ✓ |
| Multicast DNS (mDNS) | ✓ |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | ✓ |
| Integrated RADIUS Server | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Additional Internet Failover with UniFi LTE Backup | ✓ |
| Internet Quality and Outage Reporting | ✓ |
| Policy-based WAN and VPN Routing | ✓ |
| Customizable DHCP Server | ✓ |
| IPv6 ISP Support | ✓ |
| IGMP Proxy | ✓ |
| Integrated WiFi | |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
| Throughput | 6 GHz: 5.7 Gbps 5 GHz: 4.3 Gbps 2.4 GHz: 688 Mbps |
| MIMO | 6 GHz: 2 x 2 (DL/UL MU-MIMO) 5 GHz: 2 x 2 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Antenna Gain | 6 GHz: 6 dBi 5 GHz: 7 dBi 2.4 GHz: 4 dBi |
| Max. TX Power | 6 GHz: 24 dBm 5 GHz: 26 dBm 2.4 GHz: 23 dBm |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Max. BSSIDs | 4 per Radio (Gateway Mode) 4 per Radio (AP Mode) |
| Supported Data Rates | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| Hardware | |
| Max. Power Consumption | 22W |
| Power Method | USB type C (5V DC/5A) |
| Power Supply | USB type C (5V DC/5A) (Adapter included) |
| Supported Voltage Range | 100—240V AC |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB |
| Weight | 422 g (14.9 oz) |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Management | Ethernet Bluetooth |
| LEDs | Ethernet ✓ |
| Button | (1) Factory-reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Software | |
| VLAN | 802.1Q |
| Guest Traffic Isolation | ✓ |
| Application Requirements | UniFi Network Version 9.0.108 and later |
