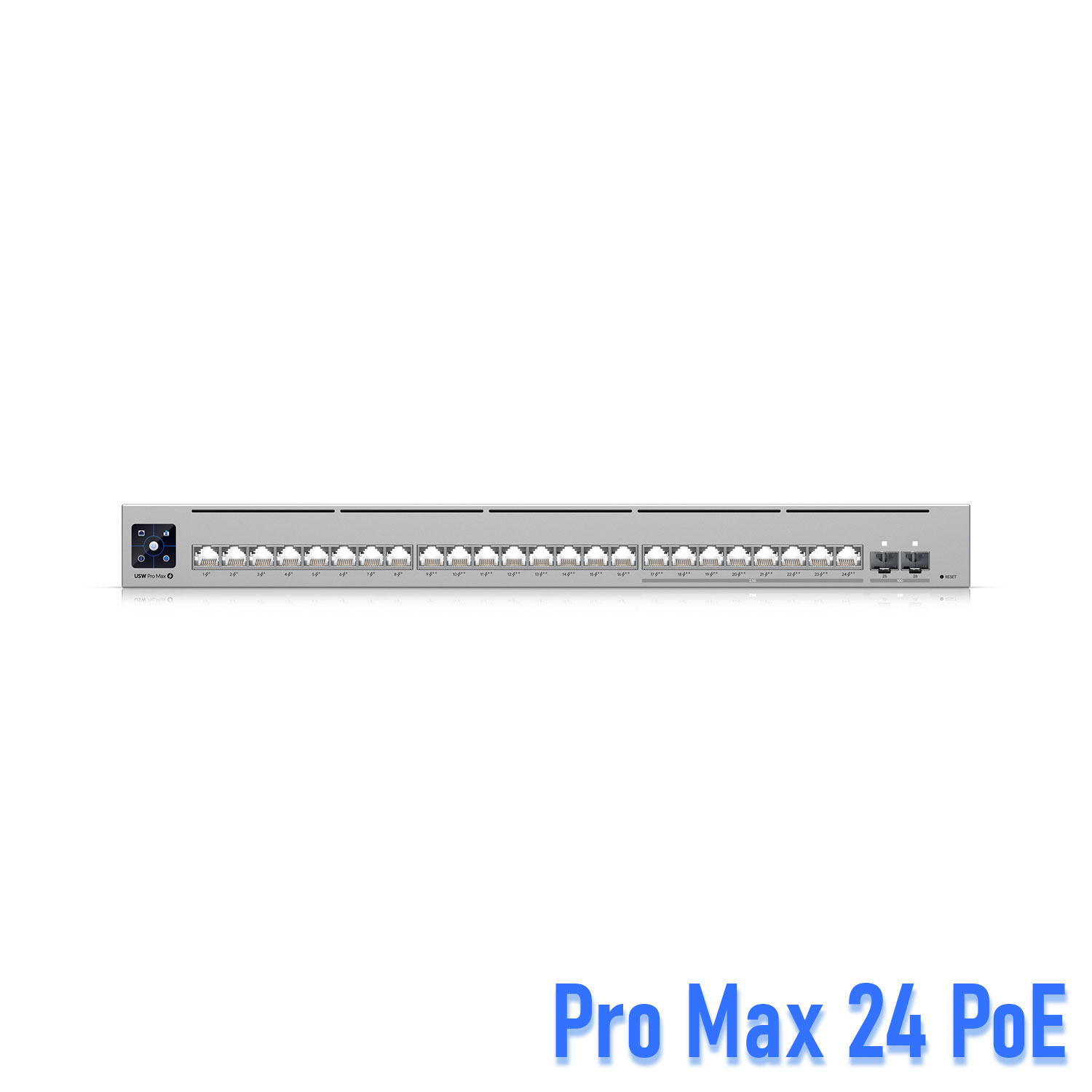

Có 12 lựa chọn. Bạn đang chọn Pro-Max-24-PoE:
Hỗ trợ & Tư Vấn TP.HCM
Hỗ trợ & Tư Vấn Hà Nội
MÔ TẢ SẢN PHẨM

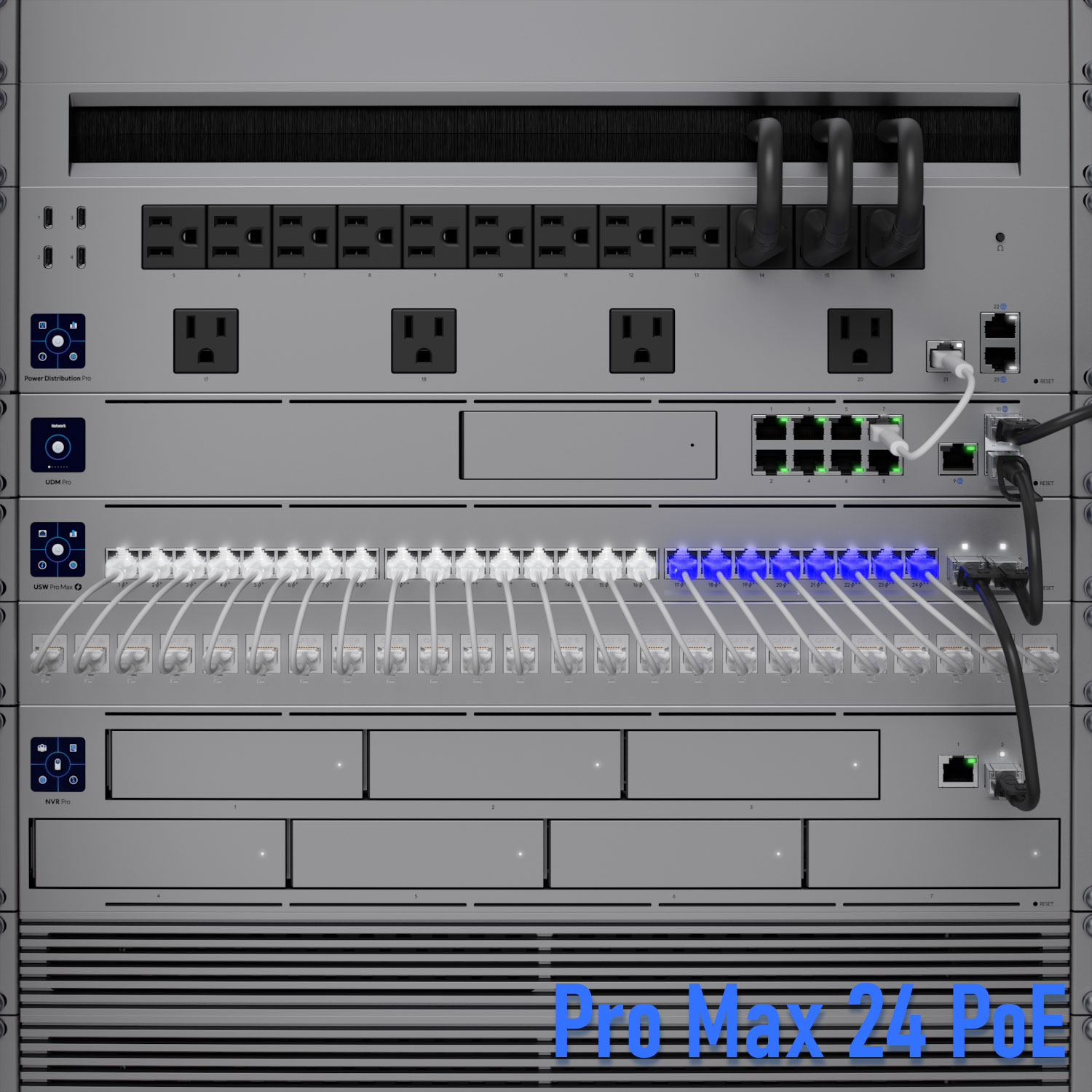

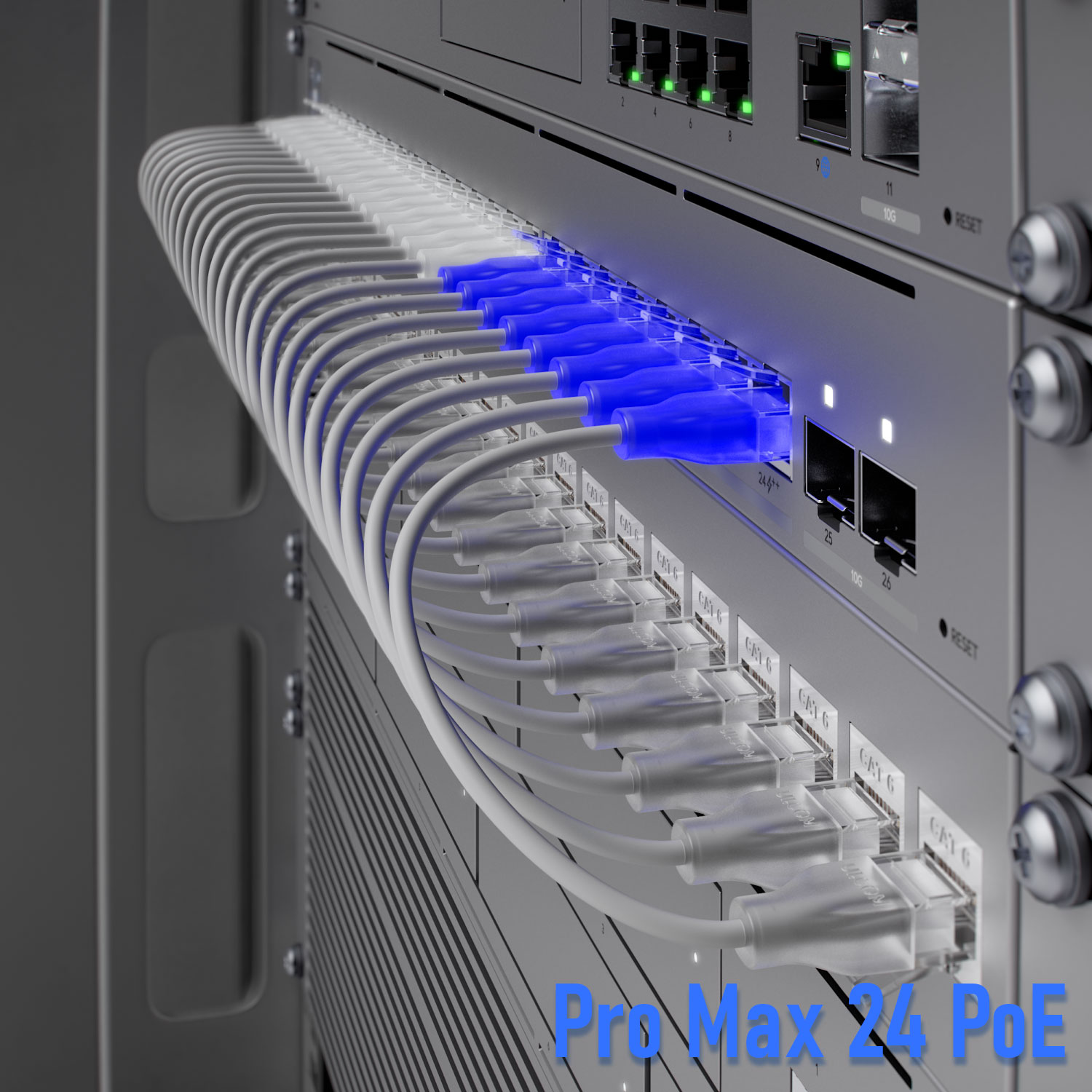

- Switch có cổng Etherlighting™ phát sáng để biểu thị vị trí cổng, tốc độ/liên kết và VLAN/Network.

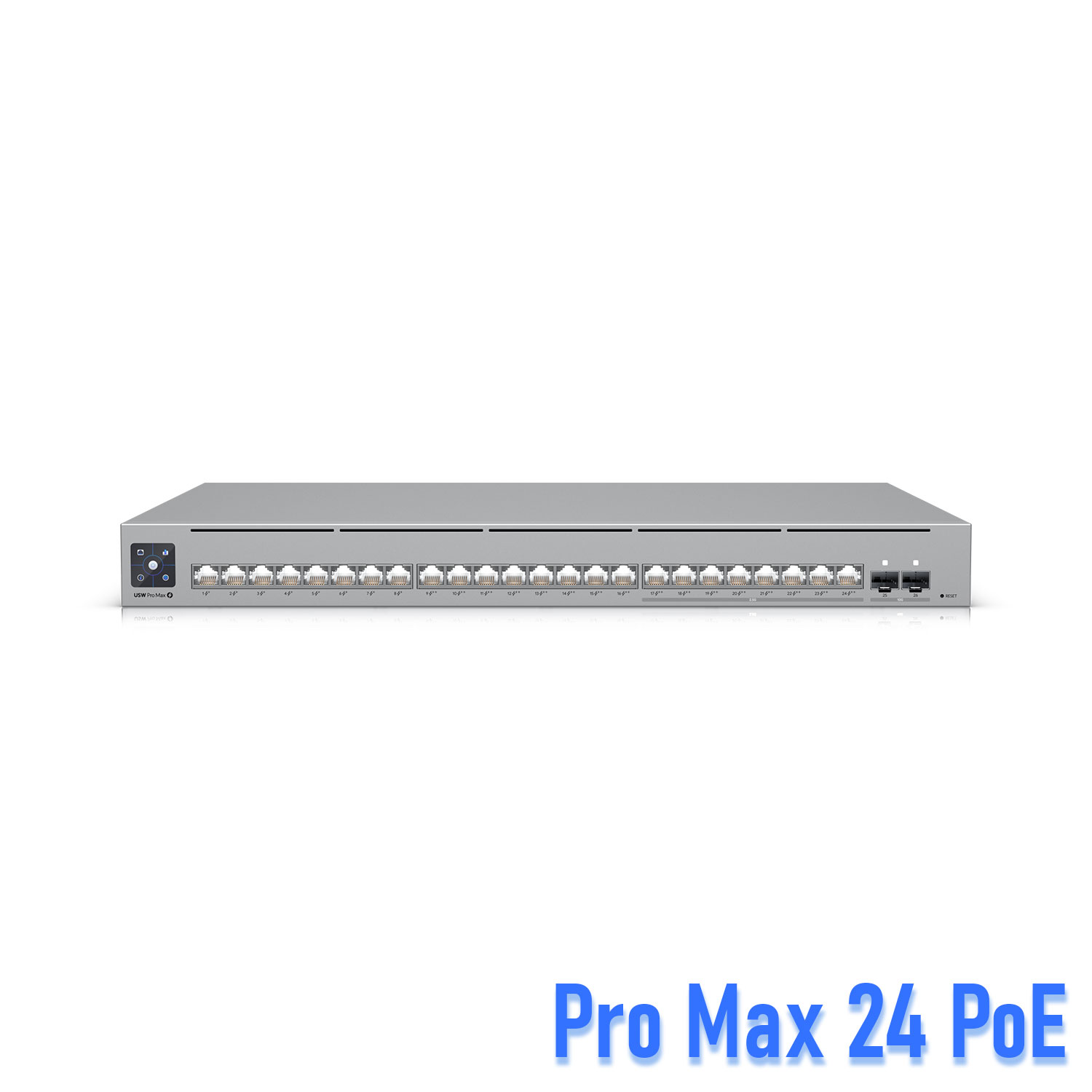

- (8) 2.5 GbE RJ45 PoE++ ports & (8) GbE RJ45 PoE+ ports & (8) GbE RJ45 PoE++ ports & (2) 10G SFP+ ports.
- Tổng công suất PoE 400W.
- Cấp nguồn bằng AC/DC internal 450W 100—240V AC & nguồn USP-RPS DC dự phòng.

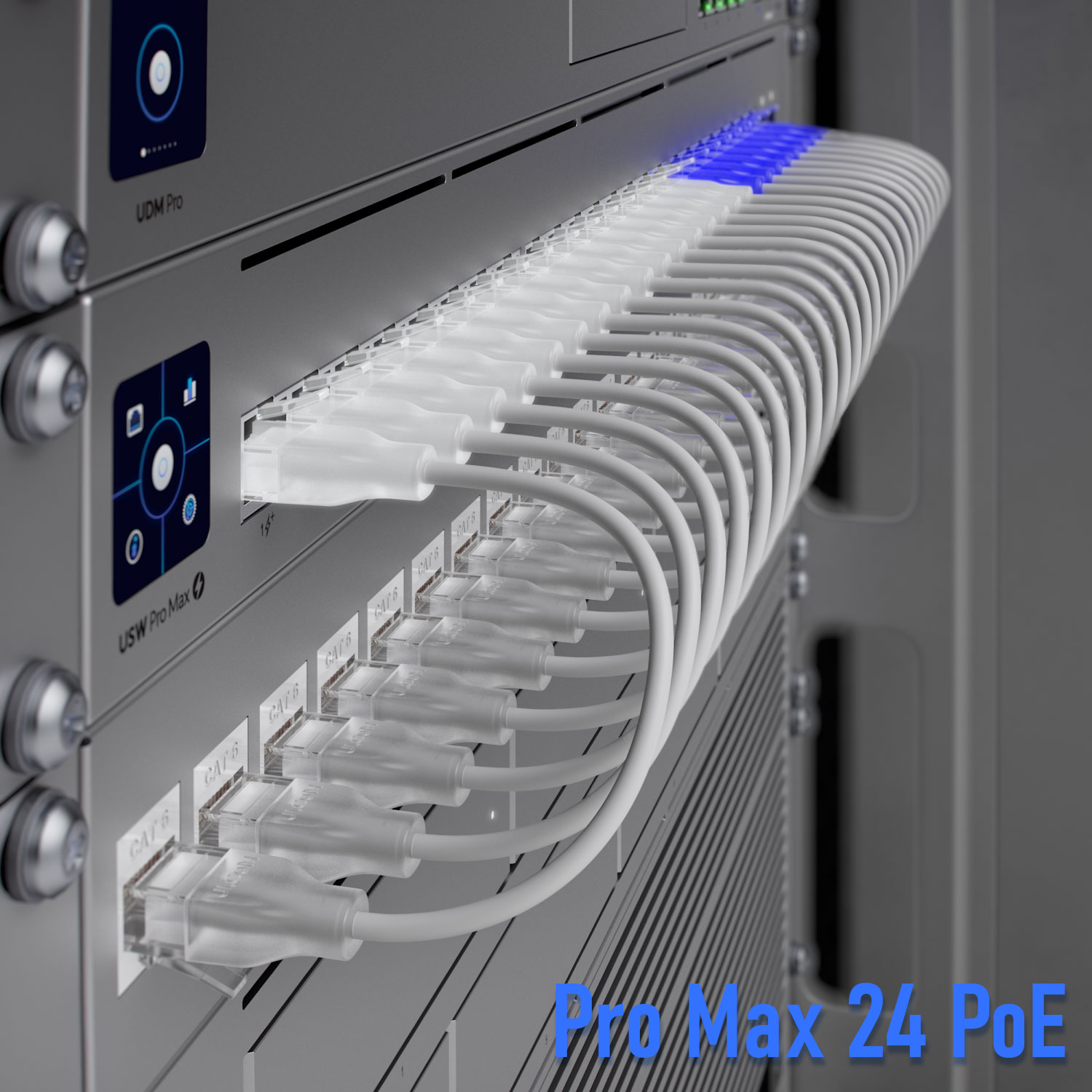

- Màn hình LCM 1.3" touchscreen giám sát thông số.
- Quản lý với UniFi Network 8.0.24 hoặc cao hơn.
IGMP snooping, STP / RSTP with priorities and port-level disable, Port isolation, Storm control, Voice VLAN, Port mirroring, LACP port aggregation, Multicast / broadcast rate limiting, MAC address blocking, Flow control, 802.1X control, Jumbo frames, Proprietary loop protection, DHCP snooping / guarding, Egress rate limit, LLDP-MED, Port restricted by MAC, Device isolation with ACLs.
DHCP for locally-managed networks, DHCP relay, Inter-VLAN routing between networks on same switch, Static routing between local networks, Network isolation with ACLs.
- Yêu cầu Unifi Network phiên bản 8.0.24 trở lên.
- Sử dụng cáp Etherlighting UniFi để có độ sáng tối ưu nhất.
ĐÁNH GIÁ VỀ SẢN PHẨM
Thông số kỹ thuật
Mechanical | |
Dimensions | 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
Weight | Without mounting brackets: 5.1 kg (11.3 lb) With mounting brackets: 5.2 kg (11.5 lb) |
Enclosure material | SGCC steel |
Hardware | |
Management interface | Ethernet In-Band |
Networking interface | (16) GbE RJ45 ports (8) 1/2.5 GbE RJ45 ports (2) 10G SFP+ ports |
PoE interface | (8) PoE/PoE+ (Pins 1, 2+; 3, 6-) (16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
Total non-blocking throughput | 56 Gbps |
Switching capacity | 112 Gbps |

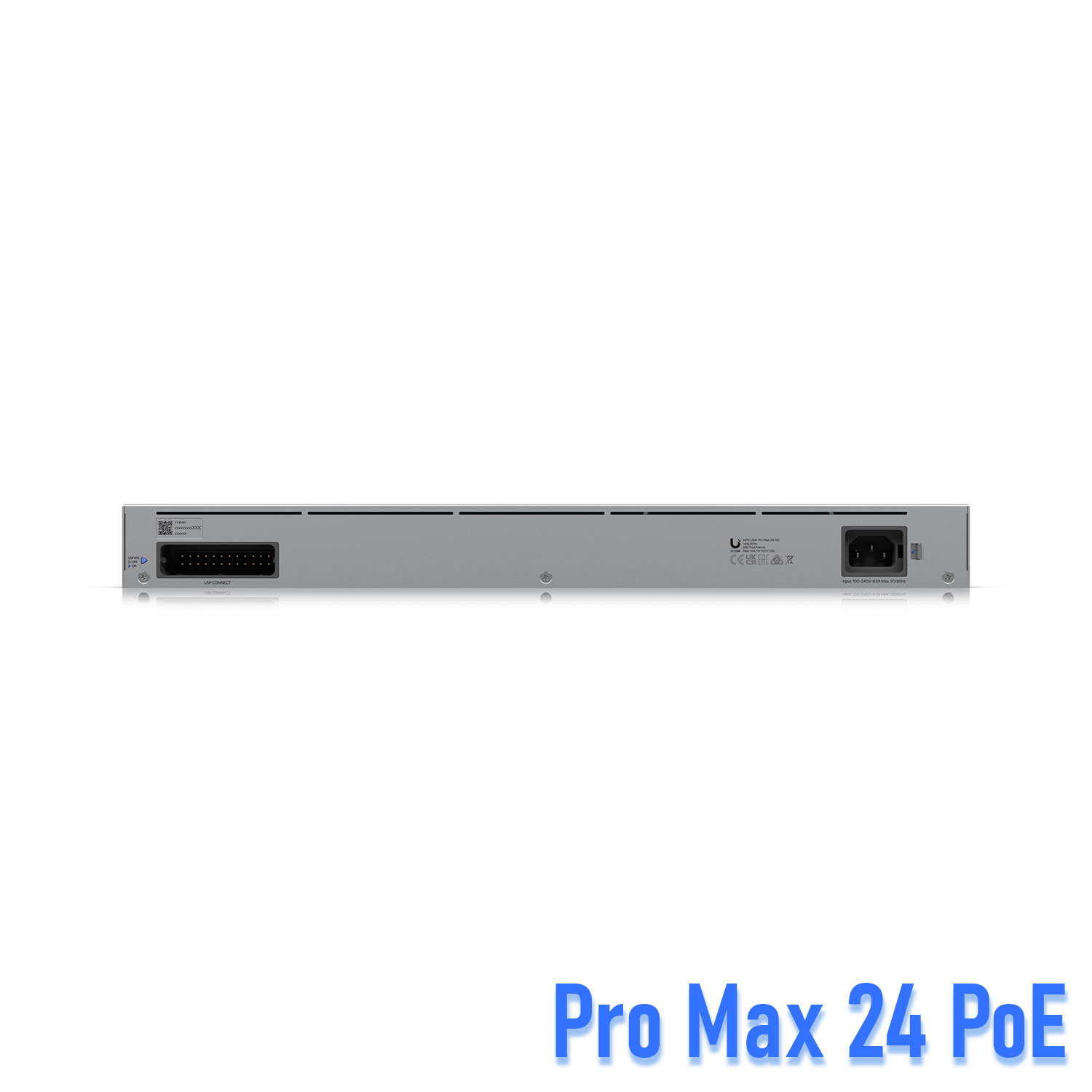

Power method | (1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input |
Power supply | AC/DC, internal, 450W |
Supported voltage range | 100—240V AC |
Max. power consumption | 50W (Excluding PoE output) |
Total available PoE | 400W |
Max. PoE wattage per port by PSE | PoE: 15.4W PoE+: 30W PoE++: 60W |
Voltage range PoE mode | PoE: 44—57V PoE+: 50—57V |
LCM display | (1) 1.3" touchscreen |
Button | Factory reset |
Ambient operating temperature | -5 to 40° C (23 to 104° F) |
Ambient operating humidity | 10 to 90% noncondensing |
Certifications | CE, FCC, IC |
Switching Features | |
Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
Layer 3 features | DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs |
Etherlighting™ | |
Ethernet | Locating Speed/link Native VLAN/network |
SFP+ | Locating Speed/link Native VLAN/network |
LEDs | |
System | Status |
RPS | Status |
Application Requirements | |
UniFi Network | Version 8.0.24 and later |
