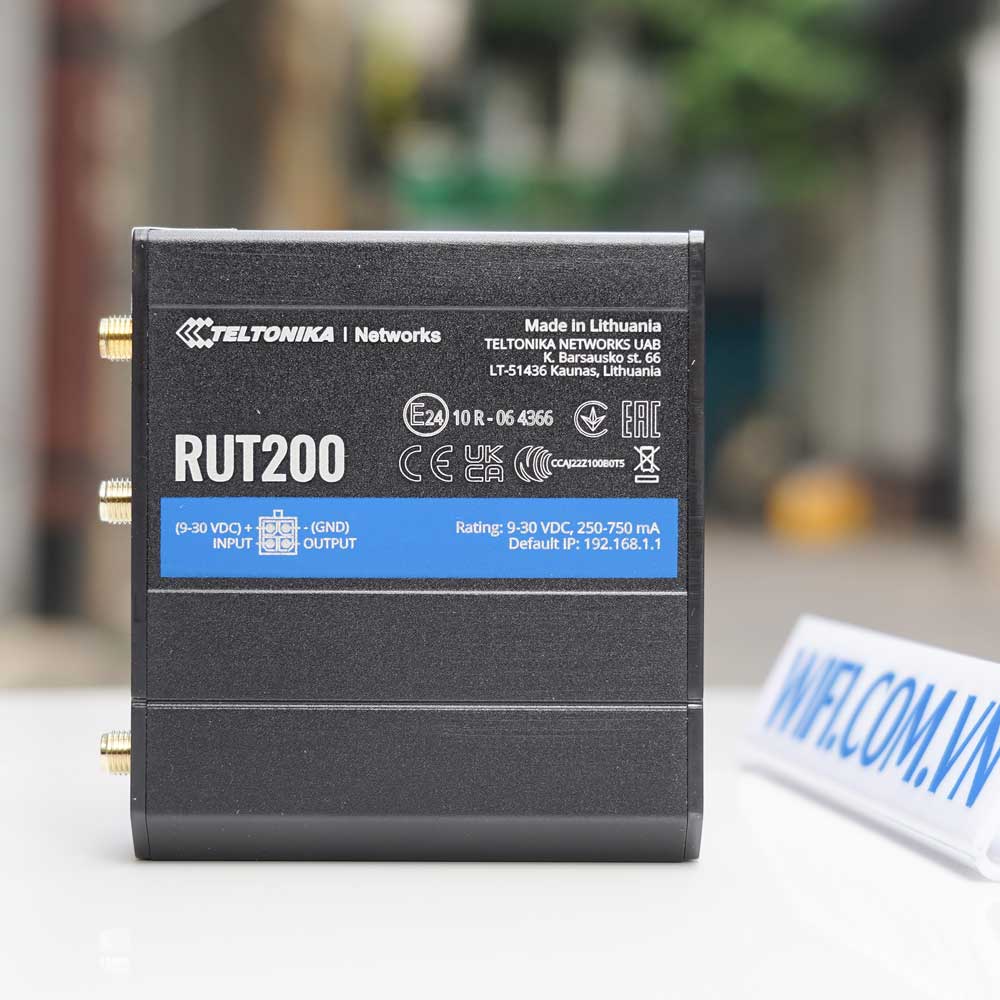

Bộ định tuyến 4G Wifi Ethernet Công Nghiệp Teltonika RUT200

Bộ định tuyến 4G Wifi Ethernet Công Nghiệp Teltonika RUT200

Mã SP: RUT200

Lượt xem: 534 lượt

0 đánh giá

(2) cổng Ethernet 10/100 Mbps: 1 WAN + 1 LAN
(1) đầu cấp nguồn 4-pin tiêu chuẩn công nghiệp
Chịu tải 50 user đồng thời
Hỗ trợ VPN quản lý, truy cập từ xa
Tính năng: VoIP, QoS, VLAN, WEB filter, VPN, WireGuard,API,Hotspot,...
Lắp đặt đơn giản với thanh ray DIN tích hợp
Giá niêm yết: 6.600.000 đ -27%
Giá khuyến mại: 4.840.000 đ
Bảo hành: 12 Tháng

Hỗ trợ & Tư Vấn TP.HCM

Tư Vấn Giải Pháp và Kinh Doanh
Kinh Doanh Bán Sỉ và Dự Án
Hỗ Trợ Kỹ Thuật Sau Bán Hàng
Kinh Doanh Bán Sỉ & Hợp Tác Đối Tác

Hỗ trợ & Tư Vấn Hà Nội

Quản Lý Chung
Tư Vấn Giải Pháp & Kinh Doanh
Kinh Doanh Bán Sỉ và Dự Án
Kỹ Thuật & Kế Toán

MÔ TẢ SẢN PHẨM

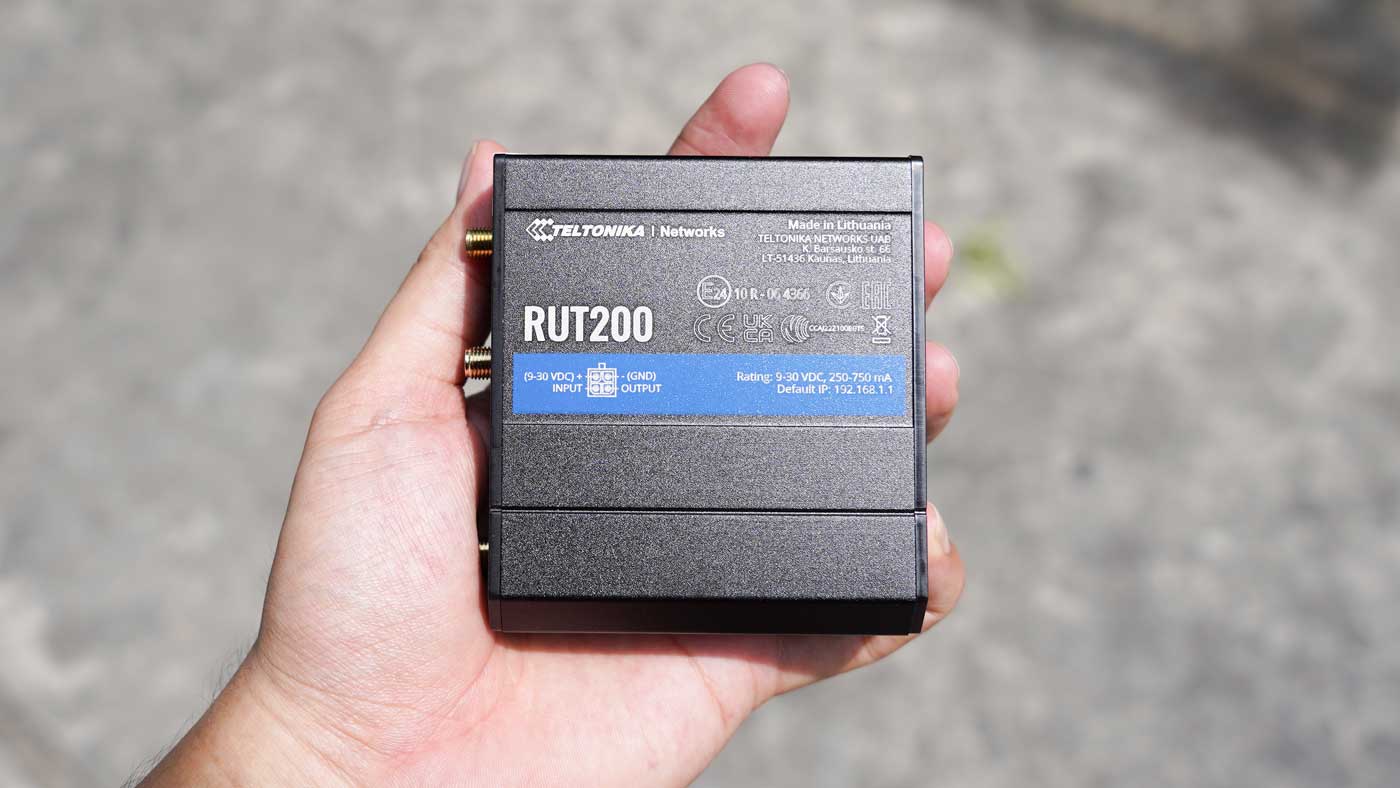

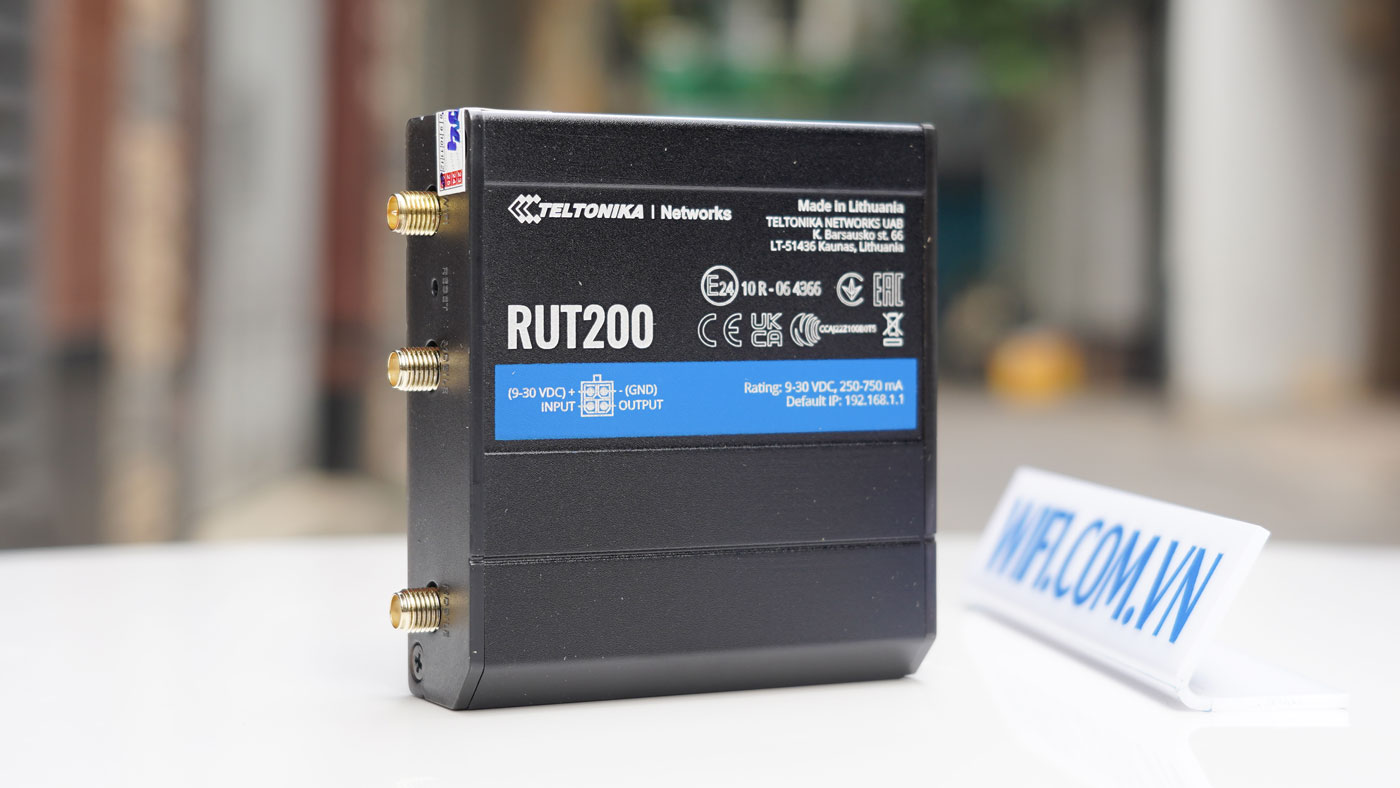

Bộ định tuyến 4G Wifi Ethernet Công Nghiệp Teltonika RUT200

RUT200 là bộ định tuyến Ethernet công nghiệp nhỏ gọn, tăng cường bảo mật thông qua cách ly mạng cho các thiết bị đầu cuối. Hai cổng Ethernet, khung ray DIN và đầu nối 3 chân công nghiệp, nó đảm bảo kết nối liền mạch và cài đặt dễ dàng. Bộ định tuyến đi kèm với RutOS, Wi-Fi 4 và hỗ trợ các giao thức công nghiệp như Modbus, DLMS, DNP3 và OPC UA, đồng thời tương thích với RMS để quản lý từ xa và tại chỗ hiệu quả.

Teltonika RUT200 được thiết kế nhỏ gọn, chắc chắn với vỏ kim loại, hiệu suất cao, có nhiều tính năng đáp ứng yêu cầu đa dạng của người sử dụng. Thiết bị lý tưởng cho môi trường công nghiệp, nhà xưởng,...

Tính năng nổi bật:

- 2 Cổng RJ45 10/100M.

- Chịu tải 50 user đồng thời, hỗ trợ Mac filter (Whitelist, blacklist)..

-Tính năng không dây: IEEE 802.11b/g/n, Access Point (AP), Station (STA), Fast roaming (802.11r), Relayd

RUT200 có thể được cấu hình, quản lý đơn giản và dễ dàng thông qua giao diện WebUI. Đồng thời hỗ trợ VPN để quản lý, truy cập từ xa.

- Tính năng RMS cập nhật firmware và cấu hình cho nhiều thiết bị cùng lúc.

- Hỗ trợ nhiều tính năng VoIP, QoS, VLAN, WEB filter, VPN, WireGuard,API,Hotspot,...

- Nguồn vào 9-30VDC, có bảo vệ phân cực ngược, quá dòng > 31VDC 10us

ĐÁNH GIÁ VỀ SẢN PHẨM

avatar
Đánh giá:

Thông số kỹ thuật

Download RUT200 datasheet ⇓

MOBILE
Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
3GPP Release Release 9
Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list Operator black/white list
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN
WIRELESS
Wireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA)
Wi-Fi security WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
SSID/ESSID SSID stealth mode and access control based on MAC address
Wi-Fi users Up to 50 simultaneous connections
Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes
Wireless Connectivity Features Fast roaming (802.11r), Relayd
Wireless MAC filter Whitelist, blacklist
ETHERNET
 WAN 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
NETWORK
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing Balance Internet traffic over multiple WAN connections
SSHFS Possibility to mount remote file system via SSH protocol
SECURITY
 Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
Mobile quota control Mobile data limit, customizable period, start time, warning limit, phone number
WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs
SSTP SSTP client instance suppor
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
MODBUS TCP SLAVE
ID range Respond to one ID in range [1;255] or any
Allow Remote Access Allow access through WAN
Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
 MODBUS TCP MASTER
Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
DATA TO SERVER
Protocol HTTP(S), MQTT, Azure MQTT, Kinesis
MQTT GATEWAY
MQTT Gateway Allows sending commands and receiving data from MODBUS Master through MQTT broker
DNP3
Supported modes TCP Master, DNP3 Outstation
MONITORING & MANAGEMENT
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/of
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap
JSON-RPC Management API over HTTP/HTTPS
MODBUS MODBUS TCP status/control
RMS Teltonika Remote Management System (RMS)
IoT PLATFORMS
Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
Azure IoT Hub Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type
SYSTEM CHARACTERISTICS
CPU Mediatek, 580 MHz, MIPS 24KEc
Ram 128 MB, DDR2
FLASH storage 16 MB, SPI Flash
FIRMWARE / CONFIGURATION
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration
FIRMWARE CUSTOMIZATION
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Busybox shell, Lua, C, C++ SDK package with build environment provided
POWER
Connector 4-pin industrial DC power socket
Input voltage range 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption < 6.5 W Max
INPUT/OUTPUT
Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events Email, RMS, SMS
I/O juggler Allows to set certain I/O conditions to initiate event
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)

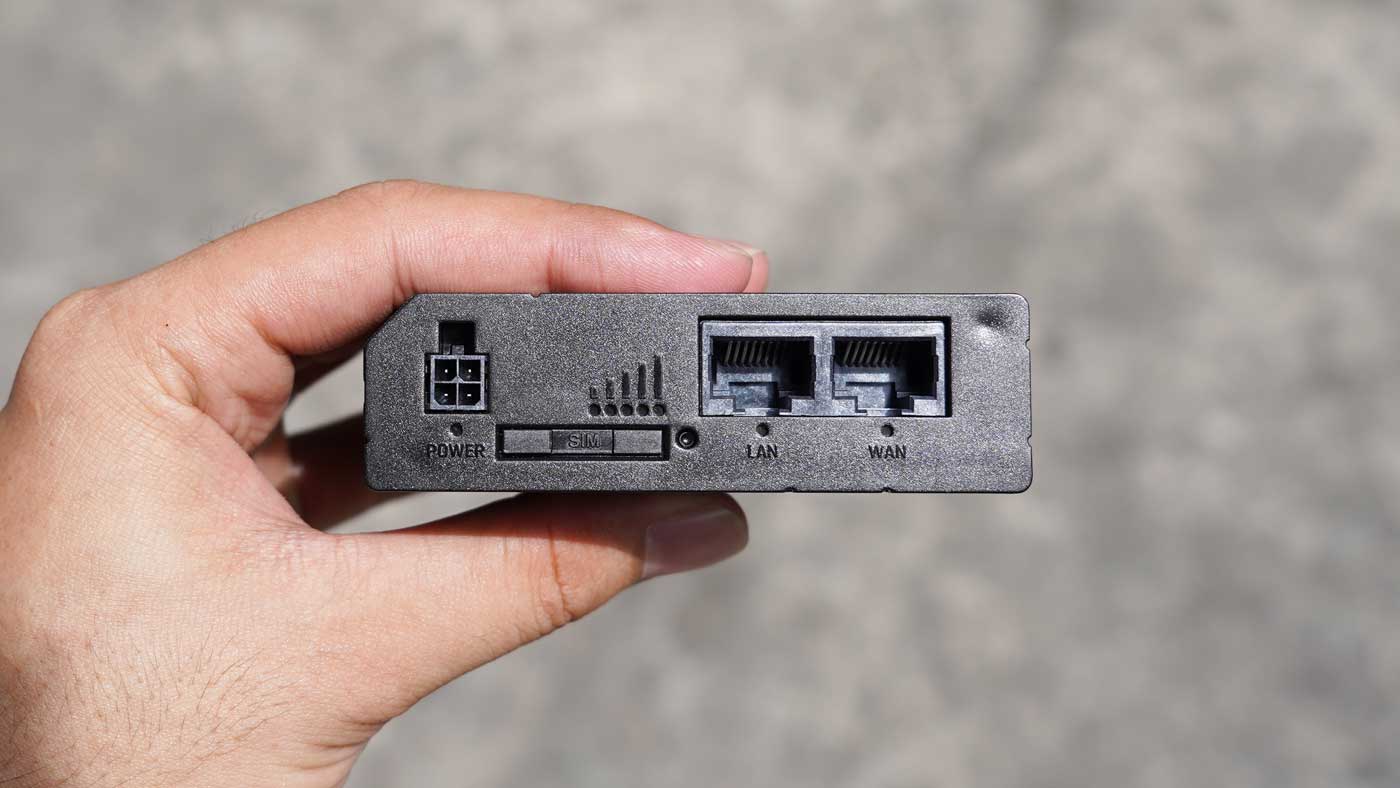

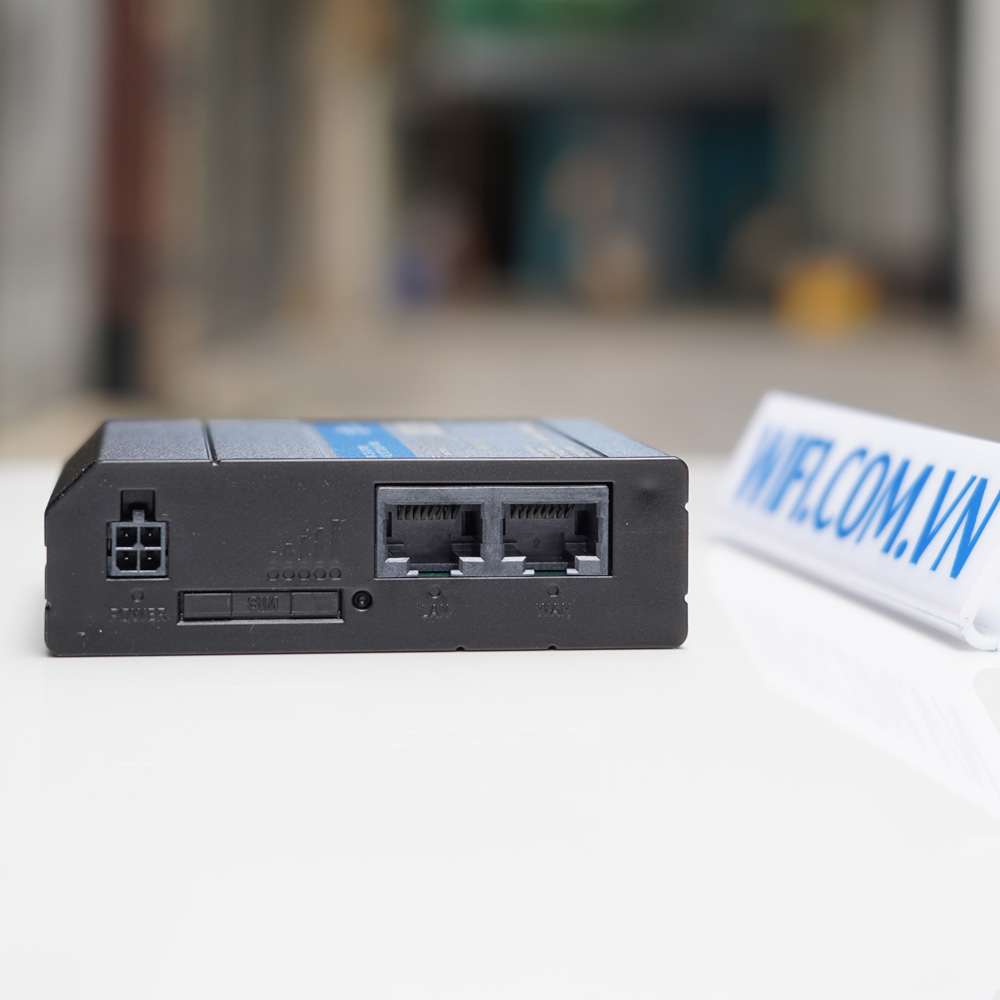

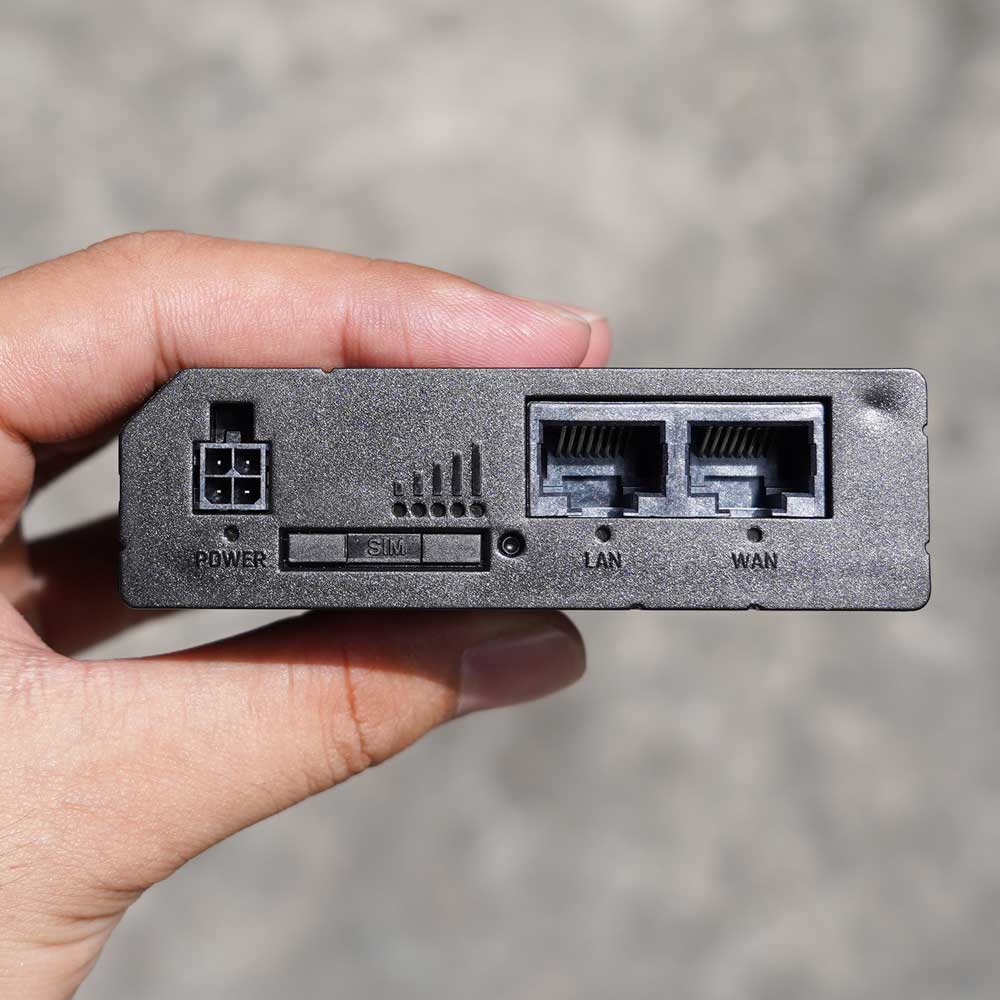

Ethernet 2 x RJ45 ports, 10/100 Mbps
I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
Power 1 x 4-pin power connector

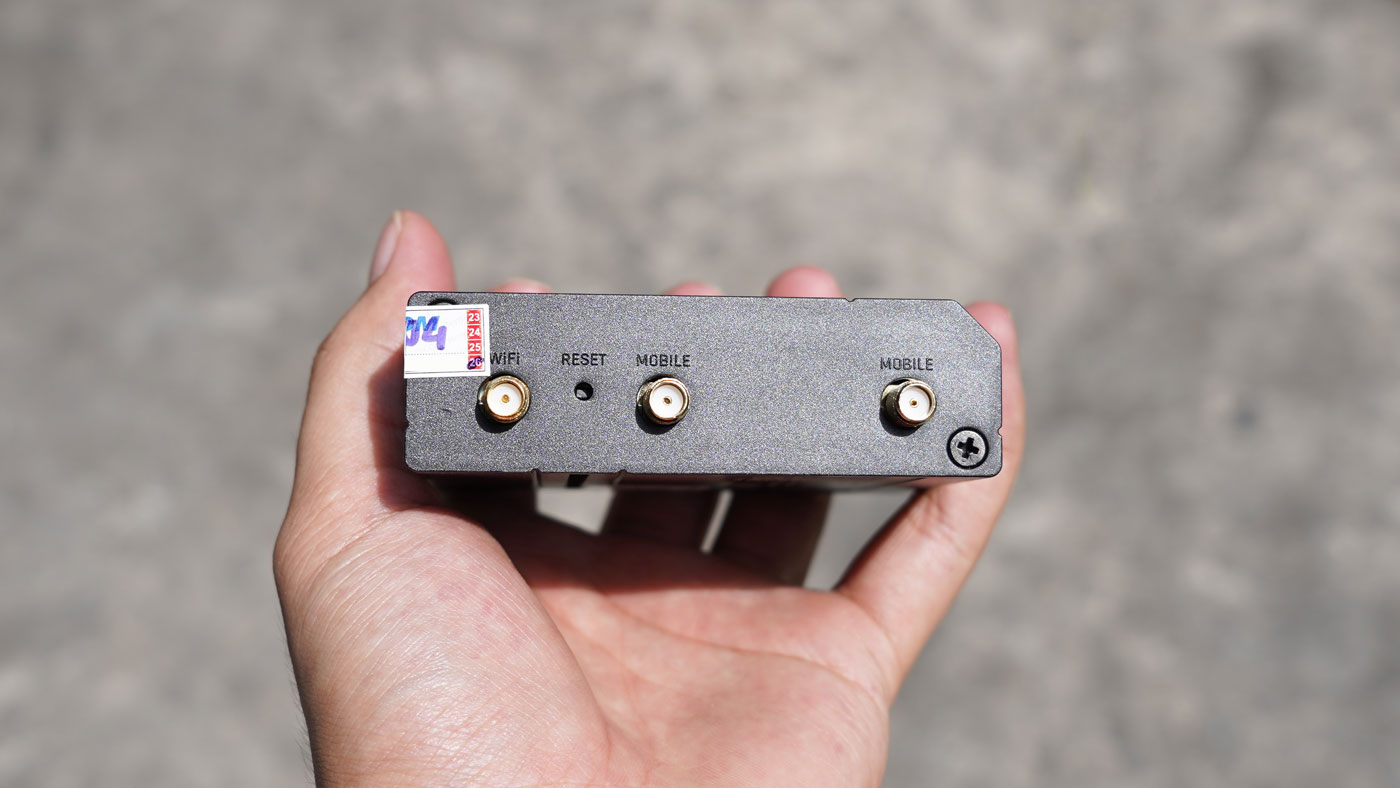

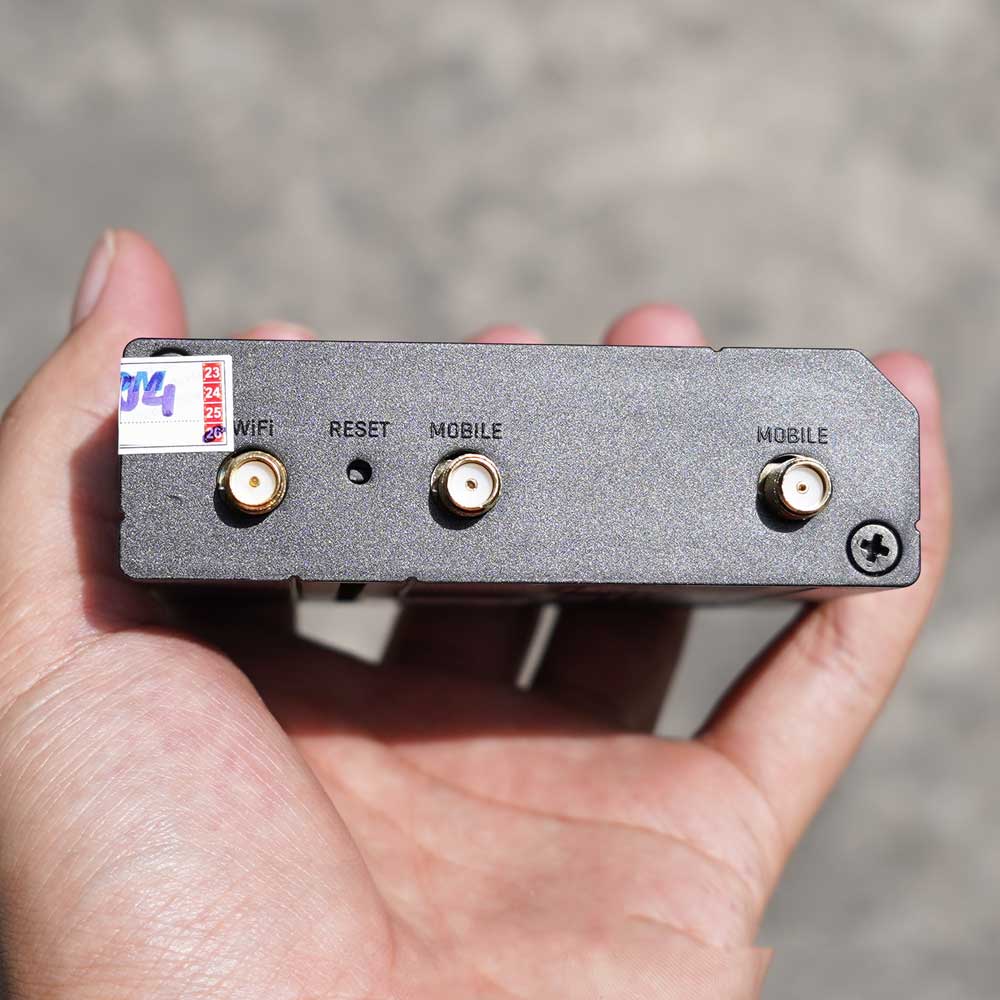

Antennas 2 x SMA for LTE, 1 x RP-SMA for Wi-Fi antenna connectors
Reset Reboot/User default reset/Factory reset button
PHYSICAL SPECIFICATION

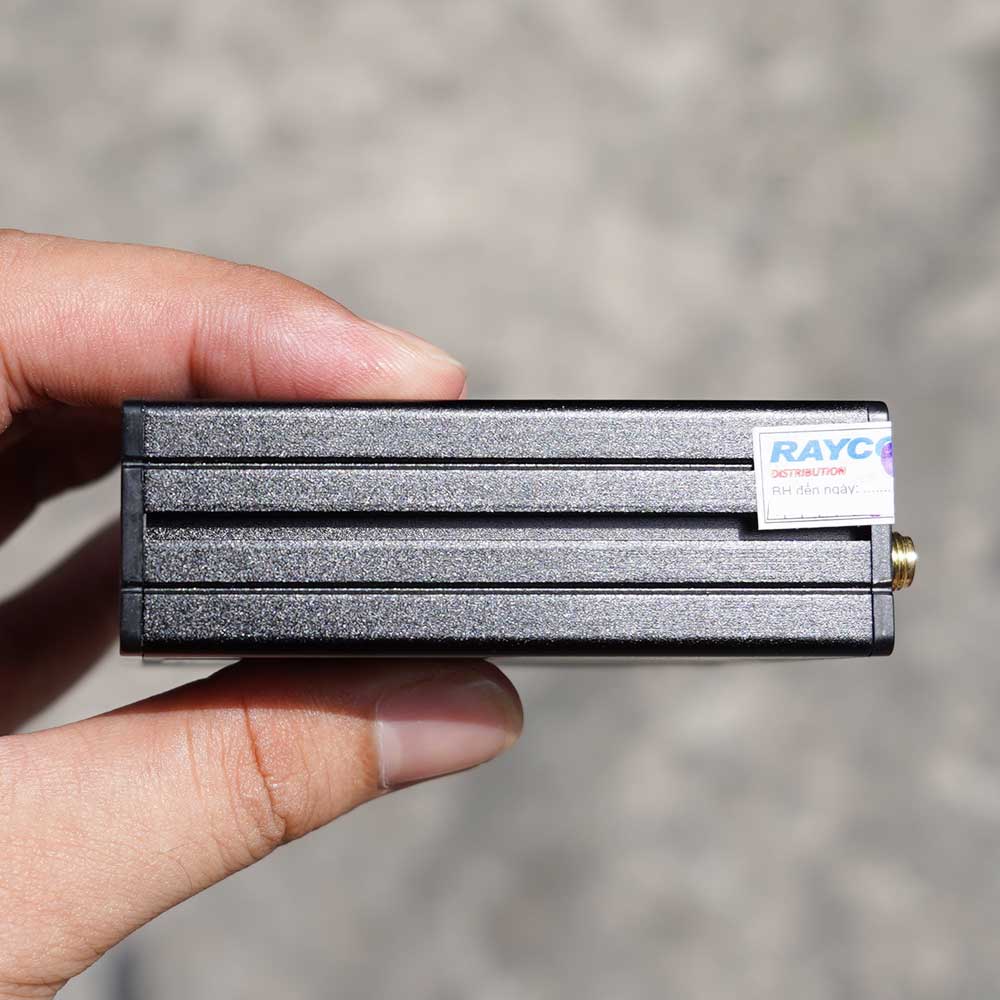

Casing material Aluminium housing, plastic panels
Dimensions (W x H x D) 83 x 25 x 74 mm
Weight 125 g
Mounting options Bottom and sideways DIN rail mounting slots
OPERATING ENVIRONMENT
Operating temperature  -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
REGULATORY & TYPE APPROVALS
Regulatory CB
SAFETY
Standards IEC 62368-1:2018 (CB Scheme)
